1216C SL005

Active

ALPHA WIRE

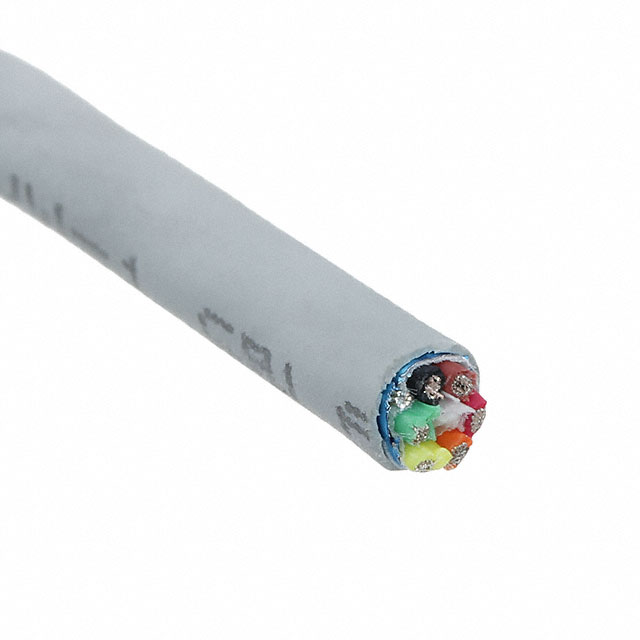

CABLE 6CON 24AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6CON 24AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1216C SL005	1216C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.11 mm	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 '
Number of Conductors	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 6 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M

Part	Voltage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Material	Usage	Wire Gauge	Conductor Material	Shield Type	Features	Number of Conductors	Jacket Color	Cable Type	Shield Material	Shield Coverage	Length	Length
ALPHA WIRE 1216C SL002	300 V	500 '	152.4 m	5.11 mm	0.201 in	-20 C	80 C	32 AWG	7	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication, Control	24 AWG	Copper, Tinned	Foil	Drain Wire	6	Slate	Multi-Conductor	Aluminum	100 %
ALPHA WIRE 1216C SL005	300 V	100 ft	30.5 m	5.11 mm	0.201 in	-20 C	80 C	32 AWG	7	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication, Control	24 AWG	Copper, Tinned	Foil	Drain Wire	6	Slate	Multi-Conductor	Aluminum	100 %
ALPHA WIRE 1216C SL001	300 V			5.11 mm	0.201 in	-20 C	80 C	32 AWG	7	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication, Control	24 AWG	Copper, Tinned	Foil	Drain Wire	6	Slate	Multi-Conductor	Aluminum	100 %	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
