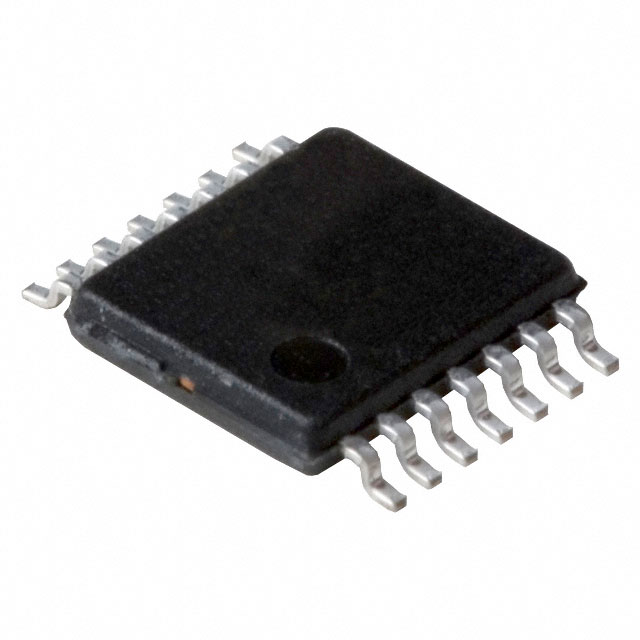

NJM12901V-TE1

Active

Nisshinbo Micro Devices Inc

IC COMPARATOR 4 GEN PUR 14SSOP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC COMPARATOR 4 GEN PUR 14SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	NJM12901V-TE1

Current - Input Bias (Max) [Max]	0.2 µA
Current - Quiescent (Max) [Max]	1.8 mA
Mounting Type	Surface Mount
Number of Elements	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Open-Collector
Package / Case	0.173 ", 4.4 mm
Package / Case	14-LSSOP
Supplier Device Package	14-SSOP
Type	General Purpose
Voltage - Input Offset (Max) [Max]	4 mV
Voltage - Supply, Single/Dual (±) [Max]	14 V
Voltage - Supply, Single/Dual (±) [Min]	2 V

IC COMPARATOR 4 GEN PUR 14SSOP

Part	Mounting Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Input Offset (Max) [Max]	Number of Elements	Package / Case	Package / Case	Type	Current - Quiescent (Max) [Max]	Supplier Device Package	Output Type	Current - Input Bias (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Nisshinbo Micro Devices Inc NJM12901V-TE1	Surface Mount	14 V	2 V	4 mV	4	0.173 ", 4.4 mm	14-LSSOP	General Purpose	1.8 mA	14-SSOP	Open-Collector	0.2 µA	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Comparator General Purpose Open-Collector 14-SSOP
