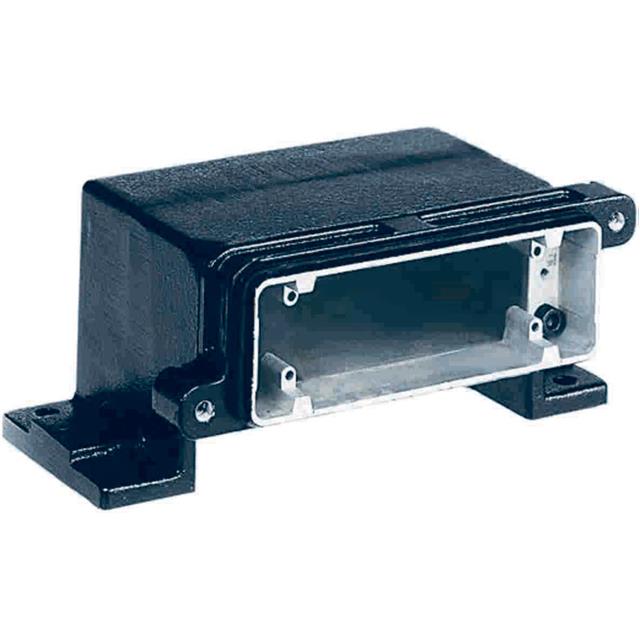

Specification	19400240941

Connector Angle	90
Connector Type	Base - Panel Mount, Base - Panel Mount 90°
Features	Corrosion Resistant
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP69K, IP65
Lock Location	Screw Locks on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	24B
Style	Quad, Side Entry
Thread Size	M25

19400240 Series

Part	Housing Finish	Thread Size	Connector Type	Housing Color	Size	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Style	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Connector Angle	Features
HARTING 19400240467	Powder Coated	M32	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Top Entry Triple	Aluminum Die Cast	125 °C	-40 °C	4.724 in	7.559 in	2.283 in
HARTING 19400240652	Powder Coated	M32	Hood Hood - 90°	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Side Entry Triple	Aluminum Die Cast	125 °C	-40 °C	6.024 in	7.559 in	5.118 in	90
HARTING 19400240462		M16 M40	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Top Entry	Aluminum Die Cast	125 °C	-40 °C
HARTING 19400240483	Powder Coated	M40	Hood	Black	24B	Locking Clip (1) on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Top Entry	Aluminum Die Cast	125 °C	-40 °C					Corrosion Resistant
HARTING 19400240471	Powder Coated	M20 M25	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Quad Top Entry	Aluminum Die Cast	125 °C	-40 °C	4.331 in	7.559 in	2.283 in
HARTING 19400240402	Powder Coated	M32	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Top Entry	Aluminum Die Cast	125 °C	-40 °C	4.331 in	7.559 in	2.283 in
HARTING 19400240473	Epoxy Powder Paint	M20	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Quad Top Entry	Aluminum Die Cast	125 °C	-40 °C	4.331 in	7.559 in	2.283 in
HARTING 19400240463
HARTING 19400240514	Powder Coated	M50	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Side Entry	Aluminum Die Cast	125 °C	-40 °C	4.35 in	7.559 in	2.283 in
HARTING 19400240461	Powder Coated	M25	Hood	Black	24B	Screw Locks on Hood	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Top Entry Triple	Aluminum Die Cast	125 °C	-40 °C	4.331 in	7.559 in	2.283 in
