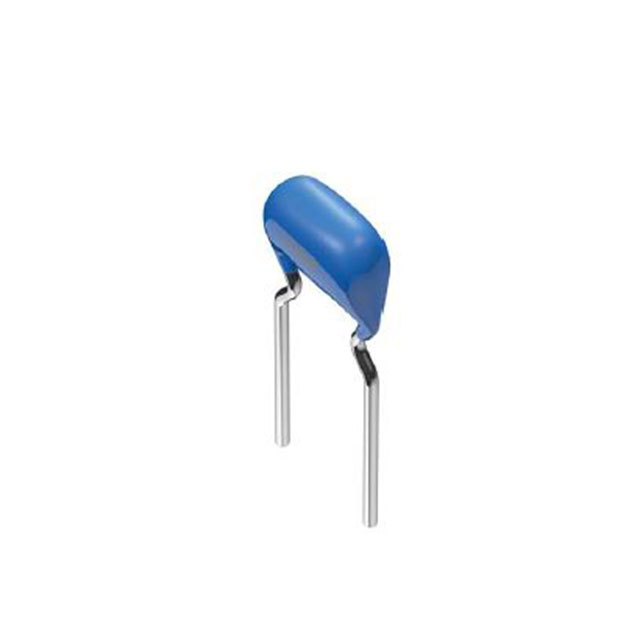

FA20X7S1H106KRU06
ActiveTDK Corporation
CAP CER 10UF 50V X7S RADIAL
FA20X7S1H106KRU06
ActiveTDK Corporation
CAP CER 10UF 50V X7S RADIAL
Description
General part information
FA20X7S1H106KRU06
10 µF ±10% 50V Ceramic Capacitor X7S Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FA20X7S1H106KRU06 |
|---|---|
| Applications | Automotive |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.157 in |
| Temperature Coefficient | X7S |
| Tolerance | 10 % |
| Voltage - Rated | 50 V |
