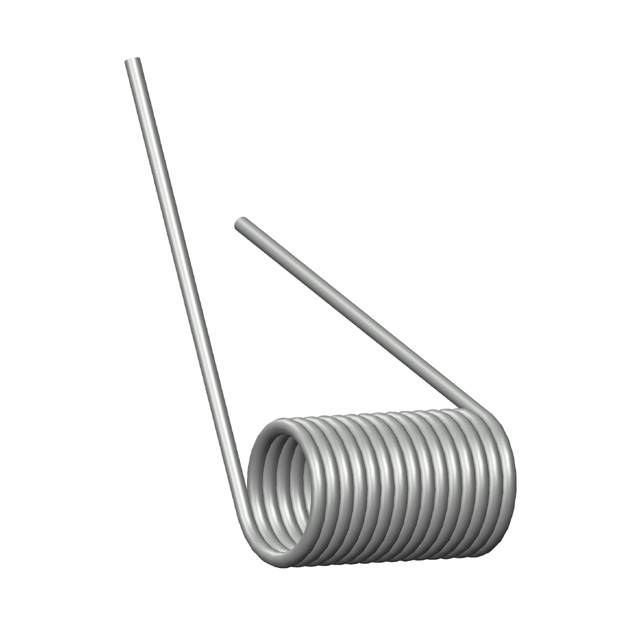

TO-5184LCS
ActiveCentury Spring Corp
TOR O=.763, W=.081
TO-5184LCS
ActiveCentury Spring Corp
TOR O=.763, W=.081
Description
General part information
TO-5184LCS
TOR O=.763, W=.081
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5184LCS |
|---|---|
| Deflection Angle | 295 ° |
| Diameter - Outside | 0.76 in |
| Finish | None |
| Leg Length | 2.5 in |
| Mandrel Diameter | 0.48 in |
| Material | Music Wire |
| Number of Coils | 14.625 |
| Wind Direction | Left |
| Wire Diameter | 0.081 in |
