PHG.4B.312.CLLD10Z

Active

LEMO

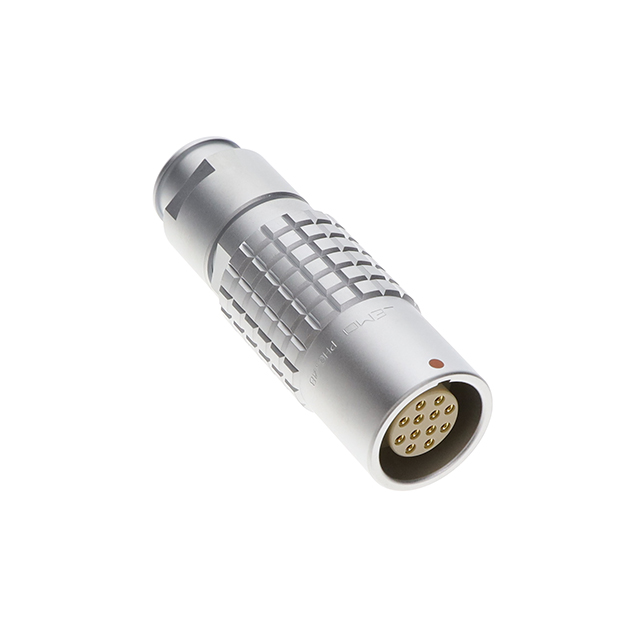

CONN RCPT FMALE 12P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHG.4B.312.CLLD10Z

Active

LEMO

CONN RCPT FMALE 12P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PHG.4B Series

12 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHG.4B.312.CLLD10Z	PHG.4B Series

	-	-
Accessory Type	-	Midpiece
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.323 - 0.362 in
Cable Opening	-	8.2 - 9.2 mm
Cable Opening	-	0.594 - 16 mm
Cable Opening [Max] [diameter]	10.5 mm	8.2 - 13.5 mm
Cable Opening [Max] [diameter]	0.413 in	0.323 - 0.531 in
Cable Opening [Min] [diameter]	0.358 in	0.283 - 0.476 in
Cable Opening [Min] [diameter]	9.1 mm	7.2 - 12.1 mm
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	-	0.9 mm
Contact Type	-	Solder Cup
Current Rating (Amps)	12 A	1.5 - 30 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
For Use With/Related Products	-	4B Series Receptacle
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	12	4 - 48
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	312	304 - 348
Shielding	Shielded	Shielded
Termination	-	Crimp
Type	-	For Female Sockets

PHG.4B Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Shielding	Fastening Type	Shell Finish	Mounting Type	Orientation	Contact Finish - Mating	Contact Material	Color	Backshell Material, Plating	Material Flammability Rating	Insert Material	Features	Primary Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Current Rating (Amps)	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]
LEMO PHG.4B.310.CLLD12	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	17 A	0.472 in	0.417 in	10.6 mm	12 mm	10	310	-55 °C	250 °C	Receptacle, Female Sockets
LEMO PHG.4B.330.CYMD12	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	5 A	0.472 in	0.417 in	10.6 mm	12 mm	30	330	-55 °C	250 °C	Receptacle, Female Sockets	Crimp
LEMO PHG.4B.348.CLLD15	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	1.5 A					48	348	-55 °C	250 °C	Receptacle, Female Sockets
LEMO PHG.4B.304.CLLD13	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	30 A	0.531 in	0.476 in	12.1 mm	13.5 mm	4	304	-55 °C	250 °C	Receptacle, Female Sockets
LEMO PHG.4B.324.CYMD15	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	7 A					24	324	-55 °C	250 °C	Receptacle, Female Sockets	Crimp
LEMO PHG.4B.320.CYMM92Z	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	8 A					20	320	-55 °C	250 °C	Receptacle, Female Sockets	Crimp	0.323 in, 0.362 in	8.2 mm, 9.2 mm
LEMO PHG.4B.320.CYMD16	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	8 A					20	320	-55 °C	250 °C	Receptacle, Female Sockets	Crimp			0.594 in, 0.63 in, 15.1 mm, 16 mm
LEMO PHG.4B.320.CYMD13Z	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	8 A	0.531 in	0.476 in	12.1 mm	13.5 mm	20	320	-55 °C	250 °C	Receptacle, Female Sockets	Crimp
LEMO PHG.4B.348.CYMD15	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	1.5 A					48	348	-55 °C	250 °C	Receptacle, Female Sockets	Crimp
LEMO PHG.4B.340.CLLD13	Shielded	Push-Pull	Chrome	Free Hanging (In-Line)	G	Gold	Bronze	Silver	Brass, Chrome	UL94 V-0	Polyetheretherketone (PEEK)	Backshell	Metal	IP50	59 Áin	1.5 Ám	Brass	2 A	0.531 in	0.476 in	12.1 mm	13.5 mm	40	340	-55 °C	250 °C	Receptacle, Female Sockets
