896-094-556-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 94POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-094-556-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 94POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 115.44

Description

General part information

896-094 Series

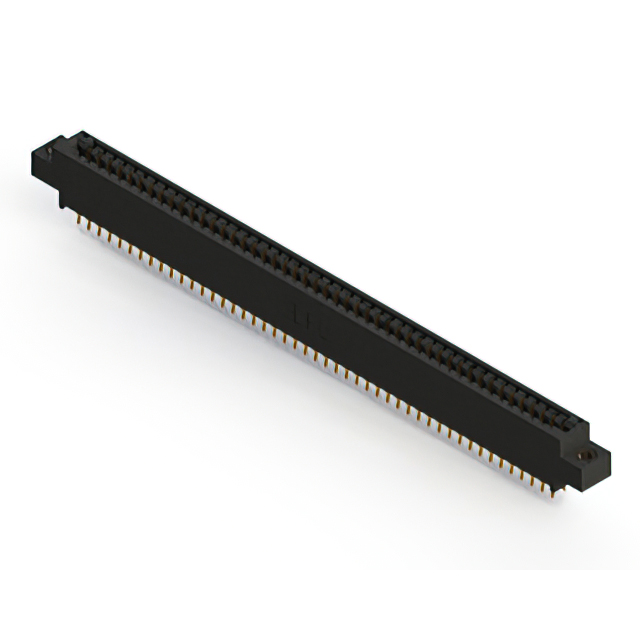

94 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-094-556-807	896-094 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	Card Extender	Card Extender
Flange Feature	M3, Threaded Insert, Top Mount Opening	Top Mount Opening, Unthreaded, Flush Mount, Top Opening, M3, Threaded Insert, 4-40, Floating Bobbin, Side Opening, Side Mount Opening
Flange Feature	-	0.116 - 0.156 in
Flange Feature	-	2.95 - 3.96 mm
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount	Board Edge, Straddle Mount, Through Hole, Right Angle
Number of Positions	94	94
Number of Positions/Bay/Row [custom]	47	47
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Solder Eyelet(s)
Termination Rows	2	2

896-094 Series

CONN EDGE DUAL FMALE 94POS 0.125

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Color	Contact Material	Gender	Read Out	Material - Insulation	Features	Card Type	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Termination Rows
EDAC Inc. 896-094-556-804	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)	Card Extender	Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Board Edge, Straddle Mount	47	2	0.156 in	Top Mount Opening, Unthreaded	3.96 mm	0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-560-204	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)	Card Extender	Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Board Edge, Straddle Mount	47	2	0.156 in	Flush Mount, Top Opening, Unthreaded	3.96 mm	0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-559-807	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)		Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Through Hole, Right Angle	47	2		M3, Threaded Insert, Top Mount Opening		0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-560-808	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)	Card Extender	Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Board Edge, Straddle Mount	47	2		4-40, Threaded Insert, Top Mount Opening		0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-560-804	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)	Card Extender	Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Board Edge, Straddle Mount	47	2	0.156 in	Top Mount Opening, Unthreaded	3.96 mm	0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-559-207	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)		Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Through Hole, Right Angle	47	2		Flush Mount, M3, Threaded Insert, Top Opening		0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-559-804	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)		Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Through Hole, Right Angle	47	2	0.156 in	Top Mount Opening, Unthreaded	3.96 mm	0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-560-202	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)	Card Extender	Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Board Edge, Straddle Mount	47	2	0.128 "	Flush Mount, Top Opening, Unthreaded	3.25 mm	0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-558-803	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)		Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Through Hole, Right Angle	47	2	0.116 in	Floating Bobbin, Top Mount Opening	2.95 mm	0.125 in	3.18 mm	94	Gold	2
EDAC Inc. 896-094-558-207	10 Áin	0.25 Ám	Cantilever	Black	Copper Alloy	Female	Dual	Polyphenylene Sulfide (PPS)		Non Specified - Dual Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Through Hole, Right Angle	47	2		Flush Mount, M3, Threaded Insert, Top Opening		0.125 in	3.18 mm	94	Gold	2
