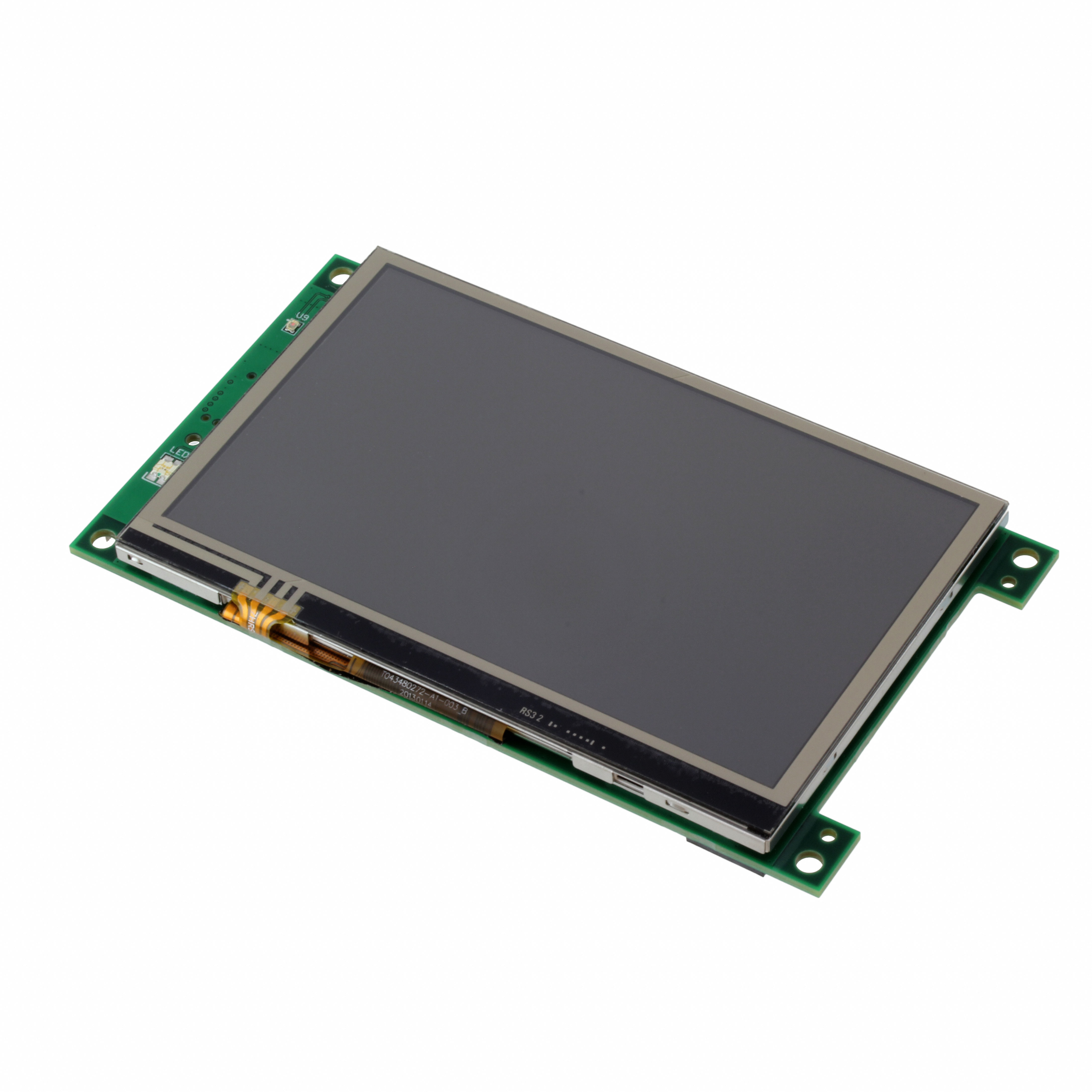

SIM231-A01-R32ALM-01

Obsolete

E2IP Technologies Inc.

LCD DISPLAY TFT 4.3" 480X272

Search across all available documentation for this part.

Obsolete

E2IP Technologies Inc.

LCD DISPLAY TFT 4.3" 480X272

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MODULE 4.3" 480X272X24BPP MV

Part	Interface	Dot Pixels [y]	Dot Pixels [x]	Backlight	Display Type	Graphics Color	Display Mode	Viewing Area [y]	Viewing Area [x]	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Dot Pitch [x]	Dot Pitch [y]	Primary Attributes	Primary Attributes [y]	Primary Attributes	Primary Attributes [x]	Supplied Contents	Secondary Attributes	Utilized IC / Part	Embedded	Type	Function
E2IP Technologies Inc. SIM231-A03-R32ALM-01	I2C, SPI, UART	272	480	LED - White	TFT - Color	Blue, Green, Red	Transmissive	56.46 mm	97.64 mm	109.22 mm	4.3 in	Resistive	0.2 mm	0.2 mm
E2IP Technologies Inc. SIM231-A04-N32ALM-01	I2C, SPI, UART	272	480	LED - White	TFT - Color	Blue, Green, Red	Transmissive	56.46 mm	97.64 mm	109.22 mm	4.3 in		0.2 mm	0.2 mm
E2IP Technologies Inc. SIM231-A02-N32ALM-01	I2C, SPI, UART	272	480	LED - White	TFT - Color	Blue, Green, Red	Transmissive	56.46 mm	97.64 mm	109.22 mm	4.3 in		0.2 mm	0.2 mm
E2IP Technologies Inc. SIM231-A01-R32ALM-01	I2C, SPI, UART	272	480	LED - White	TFT - Color	Blue, Green, Red	Transmissive	56.46 mm	97.64 mm	109.22 mm	4.3 in	Resistive	0.2 mm	0.2 mm
E2IP Technologies Inc. SIM231-A03-R32ALM-10	I2C, SPI, UART	240	432	LED - White	TFT - Color	Blue, Green, Red	Transmissive	53.86 mm	95.04 mm	109.22 mm	4.3 in		0.2 mm	0.2 mm
E2IP Technologies Inc. SIM231-A01-DEV-01															4.3 in	272	WQVGA	480	Board(s), Cable(s)	Resistive 4-Wire Touch Screen	SIM231	32-Bit, MCU	Display	LCD Touch Screen
E2IP Technologies Inc. SIM231-A01-R32ALM-10		272	480		TFT - Color			53.86 mm	95.04 mm	109.22 mm	4.3 in	Resistive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, UART 4.3" (109.22mm) 480 x 272
