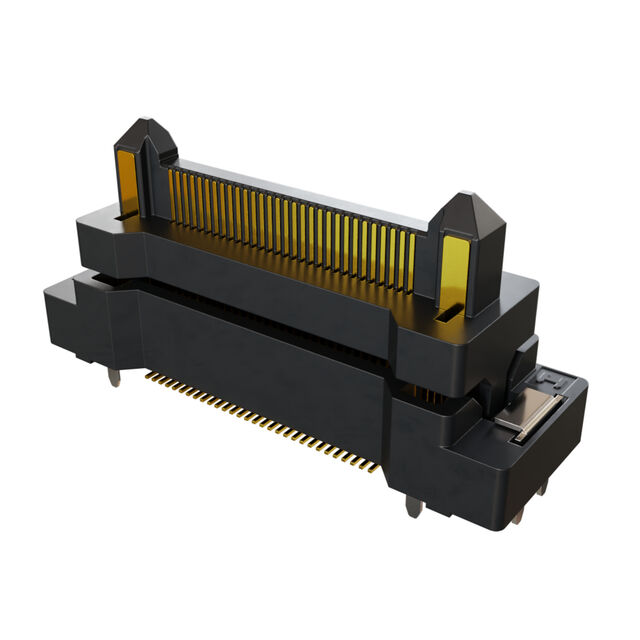

F11-20006042R
ActiveHarwin Inc.
MEZZANINE CONN, PLUG, 64POS, 2ROW, 0.5MM ROHS COMPLIANT: YES
F11-20006042R
ActiveHarwin Inc.
MEZZANINE CONN, PLUG, 64POS, 2ROW, 0.5MM ROHS COMPLIANT: YES
Description
General part information
F11-20006042R
60 Position Connector Header, Center Strip Contacts, Floating Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | F11-20006042R |
|---|---|
| Connector Type | Center Strip Contacts, Header, Floating |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Solder Retention, Pick and Place, Board Guide |
| Mated Stacking Height | 15 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch | 0.02 in |
