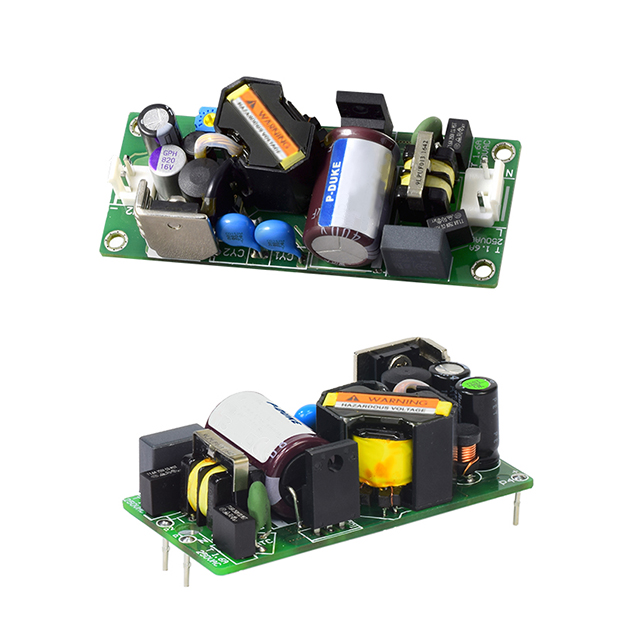

MAD30US12B
ActiveP-DUKE Technology
AC/DC CONVERTER 12V 30W
MAD30US12B
ActiveP-DUKE Technology
AC/DC CONVERTER 12V 30W
Description
General part information
MAD30US12B
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MAD30US12B |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB, cURus, FCC |
| Current - Output 1 | 2.5 A |
| Efficiency | 90.5 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.77 in |
| Size / Dimension Length | 3.34 in |
| Size / Dimension Width | 1.36 in |
| Standard Number | 60950-1, 62368-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
