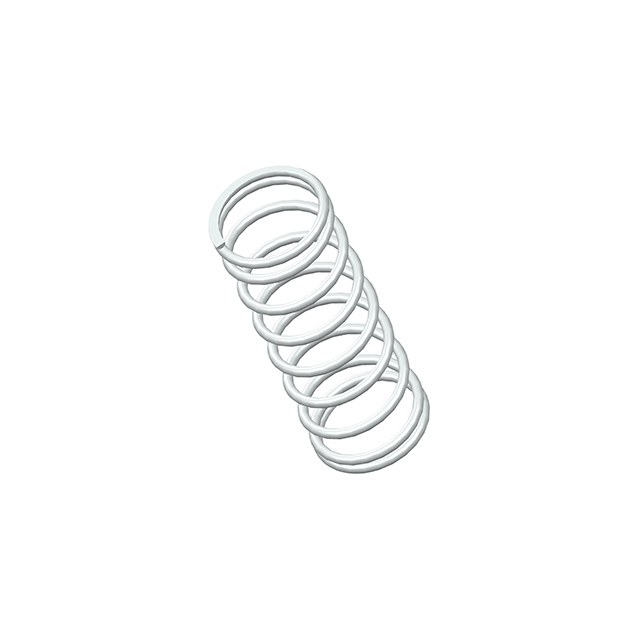

72799SCS
ActiveCentury Spring Corp
COMP O=1.460,L= 4.00,W= .125
72799SCS
ActiveCentury Spring Corp
COMP O=1.460,L= 4.00,W= .125
Description
General part information
72799SCS
COMP O=1.460,L= 4.00,W= .125
Technical Specifications
Parameters and characteristics for this part
| Specification | 72799SCS |
|---|---|
| Diameter - Inside | 1.21 in |
| Diameter - Outside | 1.46 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 4 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 17 lbs/in |
| Type | Compression |
| Wire Diameter | 0.125 in |
