Description
General part information

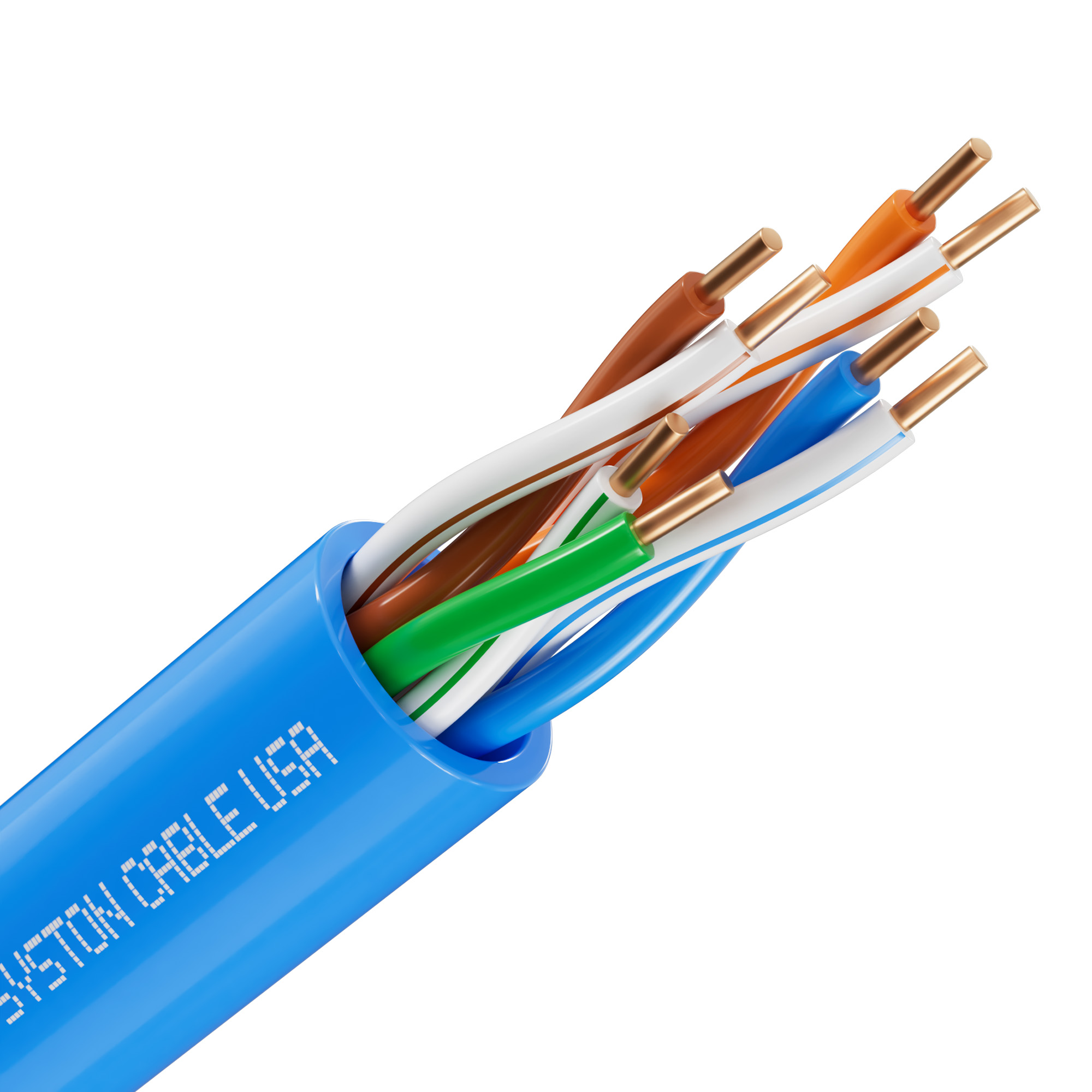

DK-BULK-1007-SB-BL-250
Conductor Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | DK-BULK-1007-SB-BL-250 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Annealed Bare, Copper |
| Features | Flame Retardant, Rip Cord, UV Resistant |
| Jacket (Insulation) Diameter | 0.2 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | Blue |
| Length | 250 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Ratings | 1666, Style, UL |
| Usage | Video, LAN, Ethernet |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
