CR4340-20
ObsoleteCR Magnetics Inc.
SENSOR CURRENT 10A, 15A, 20A
CR4340-20
ObsoleteCR Magnetics Inc.
SENSOR CURRENT 10A, 15A, 20A
Description
General part information
CR4340-20

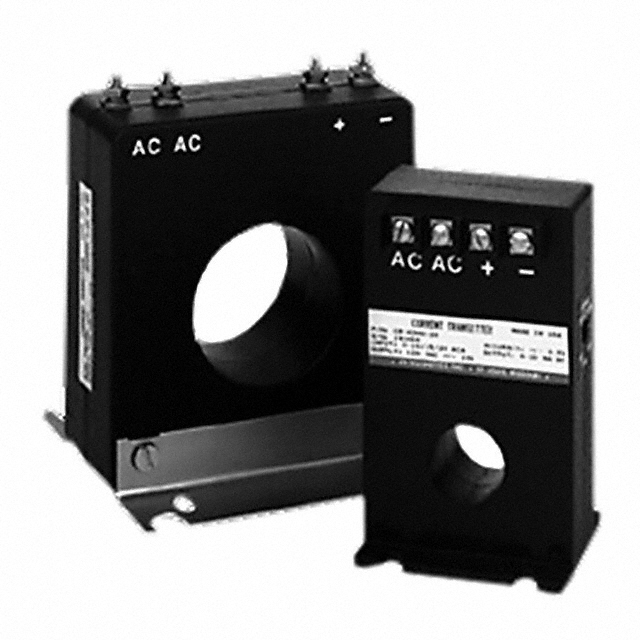

Current Sensor 10A, 15A, 20A (Selectable) 1 Channel Transformer w/Conditioning Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CR4340-20 |
|---|---|
| Accuracy | 0.5 % RH |
| Current - Sensing | 10A, 15A, 20A |
| Current - Sensing | 10 A, 15 A, 20 A |
| For Measuring | AC |
| Frequency | 50Hz, 60Hz |
| Mounting Type | DIN Rail, Panel |
| Number of Channels | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -30 °C |
| Output Current Range 1 (Max) | 20 mA |
| Output Current Range 1 (Min) | 4 mA |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 150 ms |
| Sensor Type | Transformer w/Conditioning |
| Voltage - Supply | 120 VAC |
