PA1323NL
ActivePulse Electronics
PULSE XFMR 1:1 600UH
PA1323NL
ActivePulse Electronics
PULSE XFMR 1:1 600UH
Description
General part information
PA1323NL

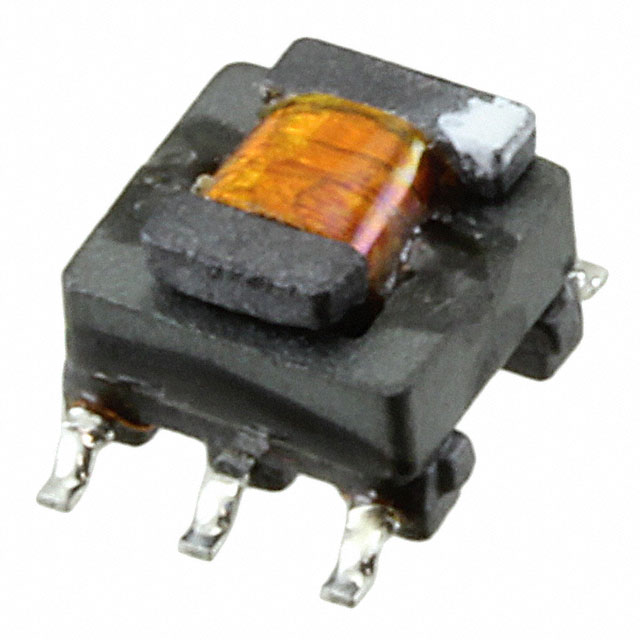

600µH Pulse Transformer 1:1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PA1323NL |
|---|---|
| ET (Volt-Time) | 21.7 VµS |
| Height - Seated (Max) | 0.21 in |
| Inductance | 600 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.375 in |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
