1609989-3
ActiveTE Connectivity Corcom Filters

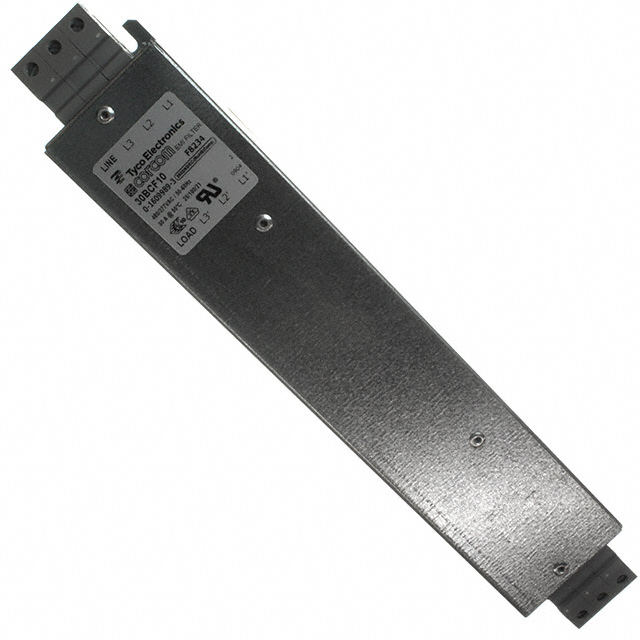

LINE FILTER 30A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCorcom EMI/RFI Filter Selector Chart
1609989-3
ActiveTE Connectivity Corcom Filters
LINE FILTER 30A CHASSIS MOUNT
Deep-Dive with AI
DocumentsCorcom EMI/RFI Filter Selector Chart
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1609989-3 | 1609989 Series |
|---|---|---|
| - | - | |
| Applications | Power Drive Systems, Inverters | Power Drive Systems, Inverters |
| Approval Agency | VDE, UR | VDE, UR |
| Configuration | Two Stage | Two Stage |
| Current | 30 A | 30 - 180 A |
| Filter Type | Three Phase (Delta) | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] [custom] | 50 °C | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Termination Style | Terminal Block | Terminal Block |
| Voltage - Rated AC (Phase to Phase) | 480 V | 480 V |
1609989 Series
LINE FILTER 30A CHASSIS MOUNT
| Part | Current | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Frequency - Operating [Max] | Frequency - Operating [Min] | Mounting Type | Filter Type | Voltage - Rated AC (Phase to Phase) | Approval Agency | Termination Style | Applications | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 1609989-3 | 30 A | -10 °C | 50 °C | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Delta) | 480 V | UR, VDE | Terminal Block | Inverters, Power Drive Systems | Two Stage |
TE Connectivity Corcom Filters 1609989-8 | 130 A | -10 °C | 50 °C | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Delta) | 480 V | UR, VDE | Terminal Block | Inverters, Power Drive Systems | Two Stage |
TE Connectivity Corcom Filters 1-1609989-7 | ||||||||||||
TE Connectivity Corcom Filters 1609989-9 | 180 A | -10 °C | 50 °C | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Delta) | 480 V | UR, VDE | Terminal Block | Inverters, Power Drive Systems | Two Stage |
TE Connectivity Corcom Filters 1609989-6 | 75 A | -10 °C | 50 °C | 60 Hz | 50 Hz | Chassis Mount | Three Phase (Delta) | 480 V | UR, VDE | Terminal Block | Inverters, Power Drive Systems | Two Stage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 161.80 | |
| 10 | $ 131.91 | |||
| 25 | $ 126.01 | |||
Description
General part information
1609989 Series
Three Phase (Delta) EMC/EMI Line Filter 30 A 50/60Hz Two Stage Terminal Block
Documents
Technical documentation and resources
