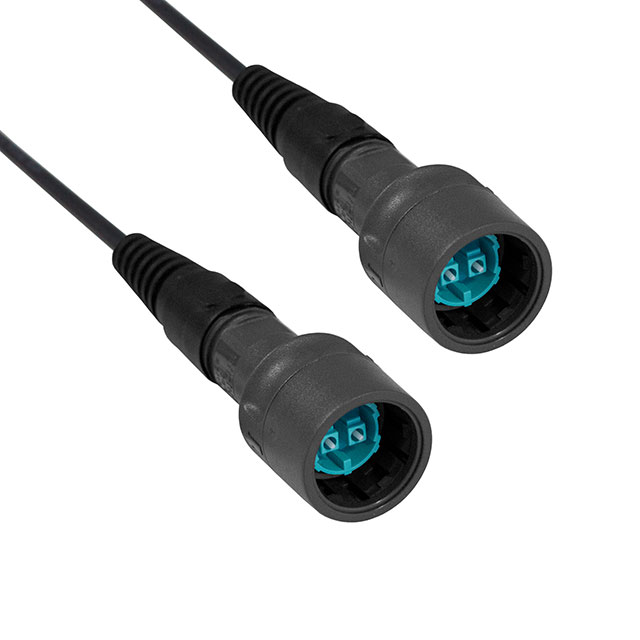

Specification	PXF6054AAA

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius	10 mm
Cable Diameter	0.08 "
Cable Type	Buffered Fiber
Color - Cable	Aqua
Color - Connectors	Aqua
Features	Low Smoke, IP66, IP69K, IP68
Fiber Cladding Diameter	125 µm
Fiber Core Diameter	50 µm
Jacket (Insulation) Material	Low Smoke Zero Halogen (LSZH)
Length - Overall	16.4 ft
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Ratings	LSZH
Type	Multimode, Duplex, OM3

PXF6054 Series

Part	Color - Connectors	Color - Cable	Bend Radius	Jacket (Insulation) Material	Operating Temperature (Max)	Operating Temperature (Min)	Features	Ratings	1st Connector	Cable Type	2nd Connector	Length - Overall	Fiber Core Diameter	Fiber Cladding Diameter	Type	Cable Diameter	Insertion Loss
BULGIN LIMITED PXF6054AAJ	Aqua	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	984.3 ft	50 µm	125 µm	Duplex Multimode OM3	0.08 "
BULGIN LIMITED PXF6054BAE	Aqua	Orange	30 mm	Poly-Vinyl Chloride (PVC)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	164 ft	62.5 µm	125 µm	Duplex Multimode OM1	0.08 "
BULGIN LIMITED PXF6054CAD	Aqua	Yellow	10 mm	Low Smoke Zero Halogen (LSZH)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	82 ft			Duplex OS1 Singlemode	0.08 "	0.2 dB
BULGIN LIMITED PXF6054BAG	Aqua	Orange	30 mm	Poly-Vinyl Chloride (PVC)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	492.1 ft	62.5 µm	125 µm	Duplex Multimode OM1	0.08 "
BULGIN LIMITED PXF6054BAF	Aqua	Orange	30 mm	Poly-Vinyl Chloride (PVC)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	328.1 ft	62.5 µm	125 µm	Duplex Multimode OM1	0.08 "
BULGIN LIMITED PXF6054BAA	Aqua	Orange	30 mm	Poly-Vinyl Chloride (PVC)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	16.4 ft	62.5 µm	125 µm	Duplex Multimode OM1	0.08 "
BULGIN LIMITED PXF6054CAG	Aqua	Yellow	10 mm	Low Smoke Zero Halogen (LSZH)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	492.1 ft			Duplex OS1 Singlemode	0.08 "	0.2 dB
BULGIN LIMITED PXF6054CAC	Aqua	Yellow	10 mm	Low Smoke Zero Halogen (LSZH)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	49.2 ft			Duplex OS1 Singlemode	0.08 "	0.2 dB
BULGIN LIMITED PXF6054BAJ	Aqua	Orange	30 mm	Poly-Vinyl Chloride (PVC)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke		LC Duplex	Buffered Fiber	LC Duplex	984.3 ft	62.5 µm	125 µm	Duplex Multimode OM1	0.08 "
BULGIN LIMITED PXF6054AAH	Aqua	Aqua	10 mm	Low Smoke Zero Halogen (LSZH)	70 °C	-25 °C	IP66 IP68 IP69K Low Smoke	LSZH	LC Duplex	Buffered Fiber	LC Duplex	656.2 ft	50 µm	125 µm	Duplex Multimode OM3	0.08 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PXF6054AAA | Datasheet
