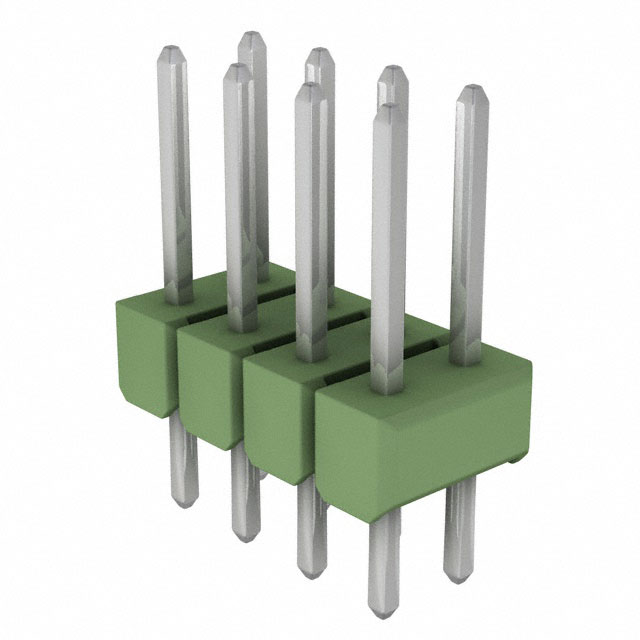

CONN HEADER VERT 8POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	826941-4

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	12 mm
Overall Contact Length	0.472 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

CONN HEADER VERT 8POS 2.54MM

Part	Contact Material	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Type	Number of Rows	Style	Mounting Type	Insulation Color	Fastening Type	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Positions Loaded
TE Connectivity AMP Connectors 826941-4	Copper Alloy	6.7 mm	0.264 in	5 A	UL94 V-0	-65 ░C	105 ░C	Unshrouded	Male Pin	2	Board to Board, Cable	Through Hole	Green	Push-Pull	Square	2.54 mm	0.1 in	Breakaway, Header	Polybutylene Terephthalate (PBT)	78.7 µin	2 µm	2.5 mm	0.098 in	0.1 in	2.54 mm	12 mm	0.472 in	Tin	8	2 çm	78.7 çin	Solder	All
