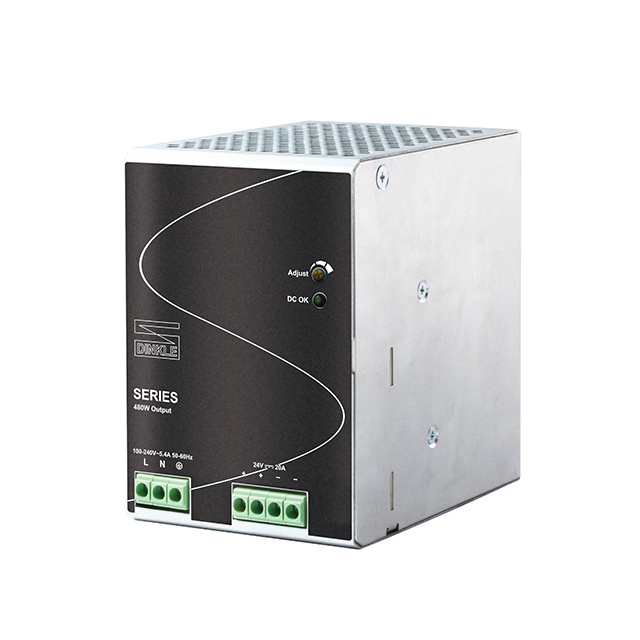

Specification	0165N-24V480W1ACQ

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CSA, EN, UL, IEC
Current - Output (Max)	20 A
DC Voltage - Input (Max)	375 V
DC Voltage - Input (Min)	120 V
Efficiency	88 %
Features	Load Sharing, Universal Input, Adjustable Output
Input Type	AC or DC, DC, AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	480 W
Size / Dimension Height	5.29 in
Size / Dimension Length	3.37 in
Size / Dimension Width	4.87 in
Standard Number	C22.2, 60950-1
Voltage - Isolation	3 kV
Voltage - Output 1	24 V
