8280-7PG-516
ActiveConxall/Switchcraft

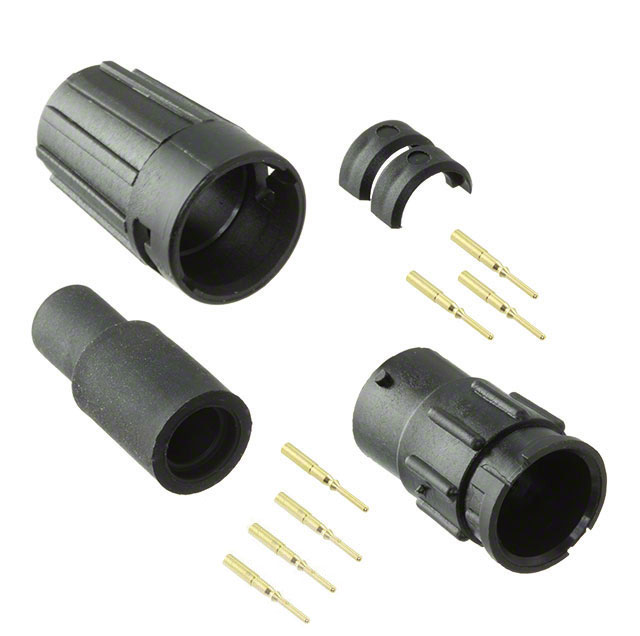

CONN RCPT MALE 7POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8280-7PG-516
ActiveConxall/Switchcraft
CONN RCPT MALE 7POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8280-7PG-516 | 8280-7PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 4.83 - 5.33 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.19 - 0.21 in |
| Cable Opening | - | 0.21 - 0.23 in |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 5.33 mm |
| Cable Opening [Max] [custom] | 0.18 in | 0.18 - 0.2 in |
| Cable Opening [Max] [custom] | 4.57 mm | 4.57 - 5.08 mm |
| Cable Opening [Min] [custom] | 0.16 in | 0.16 - 0.18 in |
| Cable Opening [Min] [custom] | 4.06 mm | 4.06 - 4.57 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
8280-7PG Series
CONN RCPT MALE 7POS GOLD CRIMP
| Part | Voltage Rating | Backshell Material, Plating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Shielding | Number of Positions | Fastening Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Connector Type | Mounting Type | Current Rating (Amps) | Color | Contact Finish - Mating | Primary Material | Applications | Features | Ingress Protection | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 8280-7PG-318 | 600 V | Nylon, Polyamide (PA) | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight | ||||||||||
Conxall/Switchcraft 8280-7PG-321 | 600 V | Nylon, Polyamide (PA) | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | ||||||||||
Conxall/Switchcraft 8280-7PG-315 | 600 V | Nylon, Polyamide (PA) | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | ||||||||||||
Conxall/Switchcraft 8280-7PG-311 | 600 V | Nylon, Polyamide (PA) | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | |||||||||||
Conxall/Switchcraft 8280-7PG-519 | 600 V | Nylon, Polyamide (PA) | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight | 4.83 mm | 0.19 in | 0.21 in | 5.33 mm | ||||||||||
Conxall/Switchcraft 8280-7PG-3DC | 600 V | Nylon, Polyamide (PA) | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight | ||||||||||||||
Conxall/Switchcraft 8280-7PG-516 | 600 V | Nylon, Polyamide (PA) | 4.06 mm | 0.16 in | 0.18 in | 4.57 mm | Unshielded | 7 | Bayonet Lock | Keyed | -40 °C | 115 °C | Crimp | Brass | Male Pins, Receptacle | Free Hanging (In-Line) | Varies by Wire Gauge | Black | Gold | Plastic | Automotive, Communication Systems, Instrumentation | Backshell | Weathertight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.21 | |
Description
General part information
8280-7PG Series
7 Position Circular Connector Receptacle, Male Pins Crimp
