603-00006
ObsoleteParallax Inc.

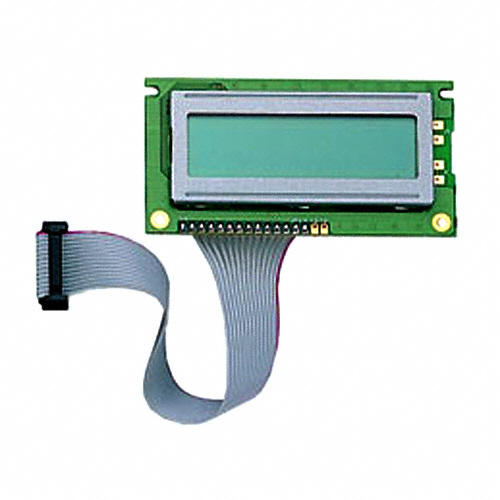

LCD MOD 32 DIG 16 X 2 REFLECTIVE
603-00006
ObsoleteParallax Inc.
LCD MOD 32 DIG 16 X 2 REFLECTIVE
Description
General part information
603-00006
Character Display Module Reflective 5 x 8 Dots LCD - Monochrome Parallel 81.00mm x 36.00mm x 6.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 603-00006 |
|---|---|
| Background Color | Green |
| Character Height | 5 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3 mm |
| Character Width (Dots) | 5 Dots |
| Display Columns | 16 |
| Display Mode | Reflective |
| Display Rows | 2 |
| Display Type | LCD - Monochrome |
| Interface | Parallel |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Outline Height | 6 mm |
| Outline Length | 81 mm |
| Outline Width | 36 mm |
| Text Color | Gray |
| Viewing Area Length | 73.5 mm |
| Viewing Area Width | 25 mm |
| Voltage - Supply | 5 VDC |
