SPMWHT541MD5WARMSC

Samsung Semiconductor, Inc.

LED LM561B COOL WHITE 5000K 5630

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWHT541MD5WARMSC	SPMWHT541 Series

	-	-
CCT (K)	5000 K	2700 - 6500 K
Color	Cool, White	Neutral, White, Warm, Cool
CRI (Color Rendering Index)	80	80 - 90
Current - Max [Max]	150 mA	150 - 200 mA
Current - Test	65 mA	65 mA
Flux @ 25°C, Current - Test	-	27 - 39 lm
Flux @ 25°C, Current - Test	-	23 - 38 lm
Flux @ 25°C, Current - Test	-	23 - 36 lm
Flux @ 25°C, Current - Test	-	31 - 33 lm
Flux @ 85°C, Current - Test	-	35 lm
Height - Seated (Max) [Max] [z]	0.035 "	0.031 - 0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.8 - 0.9 mm
Lumens/Watt @ Current - Test	-	120 - 213 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-SMD, Flat Lead Exposed Pad	4-SMD, Flat Leads, 4-SMD, Flat Lead Exposed Pad
Size / Dimension [x]	5 mm	5 - 5.6 mm
Size / Dimension [x]	0.197 in	0.197 - 0.22 in
Size / Dimension [y]	0.118 in	0.118 in
Size / Dimension [y]	3 mm	3 mm
Thermal Resistance of Package	16 °C/W	16 °C/W
Thermal Resistance of Package	-	12 - 20 °C/W
Thermal Resistance of Package	-	15 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.95 V	2.75 - 2.95 V

SPMWHT541 Series

LED LM561C NEUT WHT 4000K 5630

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	CCT (K)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Color	Viewing Angle	Thermal Resistance of Package [custom]	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Thermal Resistance of Package	Flux @ 85°C, Current - Test	Thermal Resistance of Package [diameter]
Samsung Semiconductor, Inc. SPMWHT541ML5XATNS6	0.8 mm	0.031 "	Surface Mount	200 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	4000 K	38 lm	37 lm	36 lm	Neutral, White	120 °	12 °C/W	65 mA	207 lm/W	2.75 V	80
Samsung Semiconductor, Inc. SPMWHT541MD7WAVHS0	0.9 mm	0.035 "	Surface Mount	150 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Lead Exposed Pad			24 lm		Warm, White	120 °		65 mA	125 lm/W	2.95 V	90	16 °C/W
Samsung Semiconductor, Inc. SPMWHT541ML5XAWNS0	0.8 mm	0.031 "	Surface Mount	200 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	2700 K		32 lm		Warm, White	120 °	14 °C/W	65 mA	179 lm/W	2.75 V	80
Samsung Semiconductor, Inc. SPMWHT541MD5WAQKS2	0.9 mm	0.035 "	Surface Mount	150 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Lead Exposed Pad	5700 K	31 lm		29 lm	Cool, White	120 °		65 mA	156 lm/W	2.95 V	80	16 °C/W
Samsung Semiconductor, Inc. SPMWHT541MP5WKTMS5	0.8 mm	0.031 "	Surface Mount	180 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	4000 K				Neutral, White	120 °		65 mA	183 lm/W	2.95 V	80		35 lm	15 °C/W
Samsung Semiconductor, Inc. SPMWHT541ML7XATGS0	0.8 mm	0.031 "	Surface Mount	200 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	4000 K		29 lm		Neutral, White	120 °	12 °C/W	65 mA		2.75 V	90
Samsung Semiconductor, Inc. SPMWHT541MP7WAWNS0	0.8 mm	0.031 "	Surface Mount	180 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	2700 K		25 lm		Warm, White	120 °		65 mA	130 lm/W	2.95 V	90			15 °C/W
Samsung Semiconductor, Inc. SPMWHT541MP5WAUGS5	0.8 mm	0.031 "	Surface Mount	180 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	3500 K				Warm, White	120 °	20 °C/W	65 mA		2.95 V	80
Samsung Semiconductor, Inc. SPMWHT541ML7XARNS0	0.8 mm	0.031 "	Surface Mount	200 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	5000 K		30 lm		Cool, White	120 °	12 °C/W	65 mA	168 lm/W	2.75 V	90
Samsung Semiconductor, Inc. SPMWHT541MP7WAQNS0	0.8 mm	0.031 "	Surface Mount	180 mA	0.118 in	5 mm	3 mm	0.197 in	4-SMD, Flat Leads	5700 K	31 lm	28 lm	25 lm	Cool, White	120 °		65 mA	146 lm/W	2.95 V	90			15 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	50000	$ 0.08
		125000	$ 0.08

Description

General part information

SPMWHT541 Series

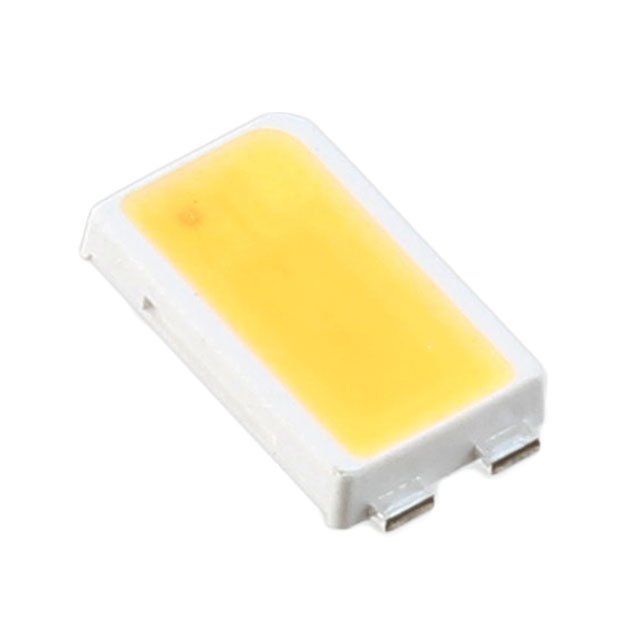

LED Lighting LM561B White, Cool 5000K 2.95V 65mA 120° 4-SMD, Flat Lead Exposed Pad
