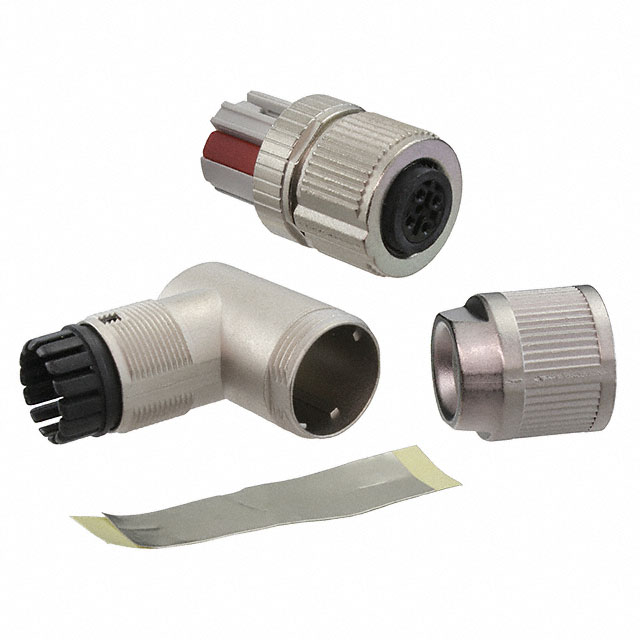

Specification	1424698

Backshell Material	Zinc Die Cast
Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.157 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Tin
Current Rating	4 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	B
Plating	Nickel
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M12-3
Shielding	Shielded
Termination	Spring-Cage
Voltage Rating (AC)	48 VAC
Voltage Rating (DC)	60 VDC

- Series

Interface Modules PSI-WL-RS232- RS485/BT/2DO

...

Part	Mounting Type	Connector Style	Connector Type	Frequency - Max	Impedance	Color	Accessory Type	For Use With/Related Products	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Material	Shell Size - Insert	Orientation	Primary Material	Shielding	Material Flammability Rating	Plating	Backshell Material	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Applications	Termination	Number of Positions	Current Rating	Cable Opening (Max)	Cable Opening (Min)	Contact Finish - Mating	Shell Finish	Voltage Rating (DC)	Voltage Rating (AC)	Shell Material	Center Gender	Adapter Type	Ingress Protection	Convert To (Adapter End)	Convert To (Adapter End) Count	Convert From (Adapter End)	Style	Adapter Series	Conversion Type	Voltage - Supply	Interface	Data Rate (Max)	Frequency (Min)	Frequency (Max)	Function	Modulation or Protocol	Power - Output	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Sensitivity	Frequency
Phoenix Contact 2884978	Cap Free Hanging	N Type	Male Pin Plug	6000 MHz	50 Ohm
Phoenix Contact 3240284						Black Gray	Clip In Fitting - Wire Retainer	For All PVC Wiring Duct Types
Phoenix Contact 1424671	Free Hanging (In-Line) Right Angle		Male Pins Plug			Silver			-40 °C	85 °C	Backshell	Copper Tin	M12-5	A	Metal	Shielded	UL94 V-0	Nickel	Zinc Die Cast	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP65 IP67	Push-Twist	Data Management	Spring-Cage	5	4 A	0.315 in	0.157 in	Gold	Nickel	60 VDC	48 VAC	Zinc Die Cast
Phoenix Contact 2885595	Free Hanging (In-Line)			2.5 GHz					-40 °C	85 °C													Threaded												Female Male	Plug to Jack	IP20	Female Socket SMA Jack	2 count	Male Pin SMA Plug	T-Shape	Dual SMA to SMA	Same Series
Phoenix Contact 2736770																								Bluetooth v1.2																				24 VDC	M-12	2 MBaud	2.402 GHz	2.48 GHz	Bluetooth Transceiver	Bluetooth v1.2	8 dBm
Phoenix Contact 1424666	Free Hanging (In-Line)		Male Pins Plug			Silver			-40 °C	85 °C	Backshell	Copper Tin	M12-4	A	Metal	Shielded	UL94 V-0	Nickel	Zinc Die Cast	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP65 IP67	Push-Twist		Spring-Cage	4	4 A	0.315 in	0.157 in	Gold	Nickel	60 VDC	48 VAC	Zinc Die Cast
Phoenix Contact 1424664	Free Hanging (In-Line)		Female Sockets Plug			Silver			-40 °C	85 °C	Backshell Coupling Nut	Bronze	M12-5	B	Metal	Shielded	UL94 V-0	Nickel	Zinc Die Cast	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP65 IP67	Threaded		Push In Spring	5	4 A	0.315 in	0.157 in	Gold	Nickel	60 VDC	48 VAC	Zinc Die Cast
Phoenix Contact 1424665	Free Hanging (In-Line) Right Angle		Female Sockets Receptacle			Silver			-40 °C	85 °C	Backshell Coupling Nut	Copper Tin	M12-5	B	Metal	Shielded	UL94 V-0	Nickel	Zinc Die Cast	Nylon 6/6 PA66 Polyamide	Dust Tight Water Resistant Waterproof	IP65 IP67	Push-Twist		Spring-Cage	5	4 A	0.315 in	0.157 in	Gold	Nickel	60 VDC	48 VAC	Zinc Die Cast
Phoenix Contact 2900046																								Industrial Monitoring and Control Wireless Alarm and Security Systems																						54 Mbps			Transceiver	802.11 b/g	400 mW	30 VDC	12 VDC	-97 dBm	2.4 GHz
Phoenix Contact 2693208											IP65													General Purpose																					Connector	1000 kBaud			Bluetooth Transceiver WLAN		8 dBm	32 V	19.2 VAC/VDC	-88 dBm	2.4 GHz
