B49410A2205Q000
ObsoleteEPCOS - TDK Electronics
CAP 200F -10% +30% 2.5V T/H
B49410A2205Q000
ObsoleteEPCOS - TDK Electronics
CAP 200F -10% +30% 2.5V T/H
Description
General part information
B49410A2205Q000

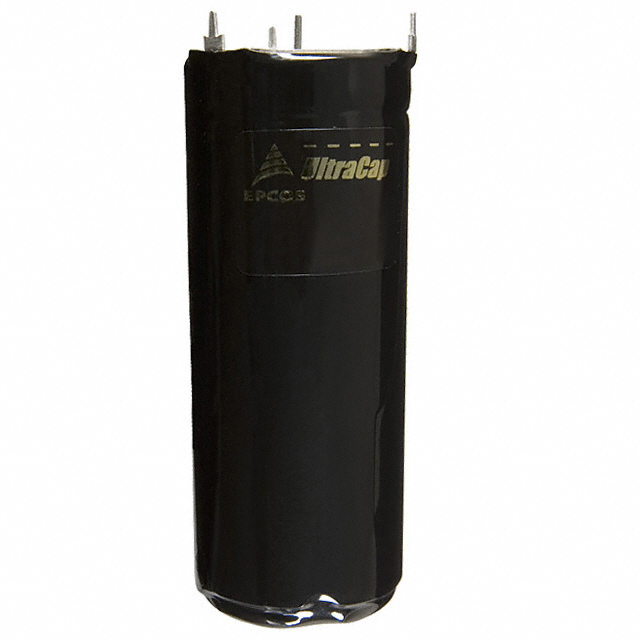

200 F (EDLC) Supercapacitor 2.5 V Radial, Can - 4 Lead 1.5mOhm @ 1kHz 90000 Hrs @ 25°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B49410A2205Q000 |
|---|---|
| Capacitance | 200 F |
| ESR (Equivalent Series Resistance) | 1.5 mOhm |
| Height - Seated (Max) | 3.031 in |
| Lead Spacing | 0.063 in |
| Lifetime | 90000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Package Leads | 4 Lead |
| Package Name | Can, Radial |
| Size / Dimension Diameter | 1.181 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 2.5 V |
