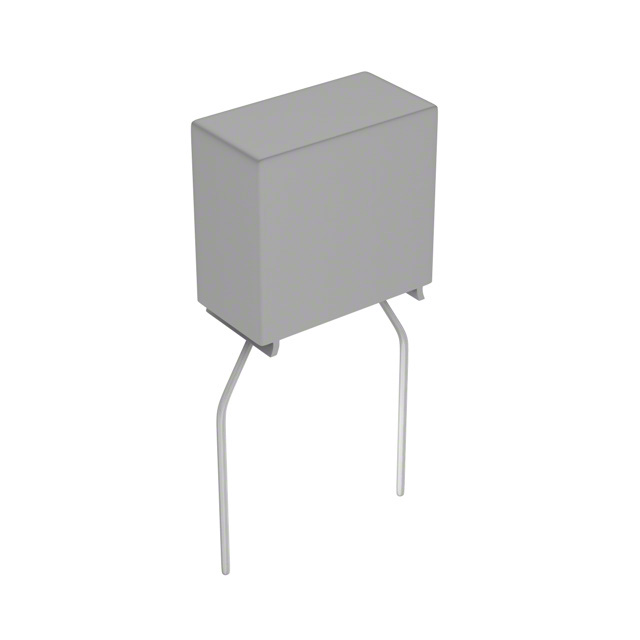

BK/PCF-3-R
ActiveEaton - Electronics Division
FUSE BRD MT 3A 250VAC 450VDC RAD
BK/PCF-3-R
ActiveEaton - Electronics Division
FUSE BRD MT 3A 250VAC 450VDC RAD
Description
General part information
BK/PCF-3-R
3 A 250 V AC 450 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/PCF-3-R |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 50 A |
| Breaking Capacity (DC) | 4.4 kA |
| Current Rating | 3 A |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.75 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Box |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.345 in |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.184 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 450 V |
