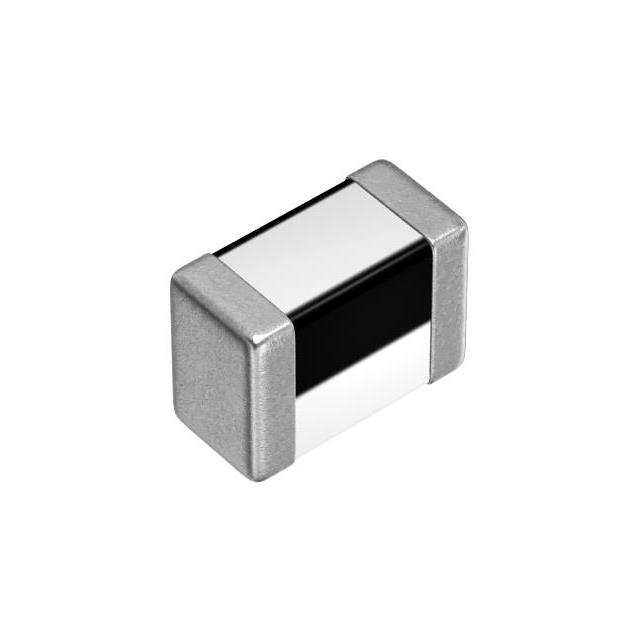

MHQ1005075HA1N3BTD25
ActiveTDK Corporation
FIXED IND 1.3NH 1A 30 MOHM SMD
MHQ1005075HA1N3BTD25
ActiveTDK Corporation
FIXED IND 1.3NH 1A 30 MOHM SMD
Description
General part information
MHQ1005075HA1N3BTD25
1.3 nH Unshielded Multilayer Inductor 1 A 30mOhm Max 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MHQ1005075HA1N3BTD25 |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Frequency - Self Resonant | 12 GHz |
| Height - Seated (Max) | 0.03 in |
| Inductance | 1.3 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Tolerance | 0.1 nH |
| Type | Multilayer |
