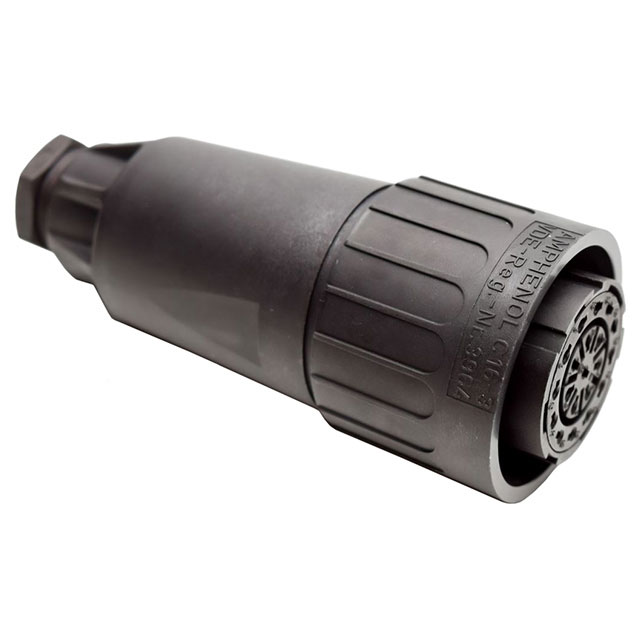

C01610E0190032
ActiveAmphenol Tuchel Industrial
CONN PLUG HSG FMALE 20POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C01610E0190032
ActiveAmphenol Tuchel Industrial
CONN PLUG HSG FMALE 20POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C01610E0190032 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1.5 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions [custom] | PE |
| Number of Positions [custom] | 20, 19 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 2 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.45 | |
| 10 | $ 31.04 | |||
| 25 | $ 29.70 | |||
| 50 | $ 28.74 | |||
| 100 | $ 27.78 | |||
| 300 | $ 26.25 | |||
Description
General part information
C01610E019 Series
20 (19 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
