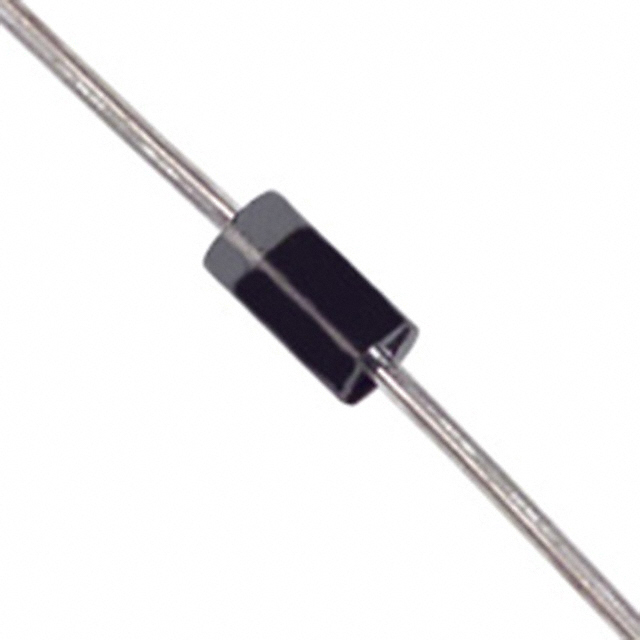

UF1007-T

Active

Diodes Inc

DIODE SWITCHING 1KV 1A 2-PIN DO-41 T/R

Search across all available documentation for this part.

Active

Diodes Inc

DIODE SWITCHING 1KV 1A 2-PIN DO-41 T/R

Technical Specifications

Parameters and characteristics for this part

Specification	UF1007-T

Capacitance @ Vr, F	10 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

NRND = Not Recommended for New Design

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Capacitance @ Vr, F	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Speed	Current - Reverse Leakage @ Vr
Diodes Inc UF1007-T	150 °C	-65 C	75 ns	10 pF	Axial DO-204AL DO-41	1 A	1.7 V	Standard	Through Hole	1000 V	DO-41	200 mA 500 ns	5 µA
