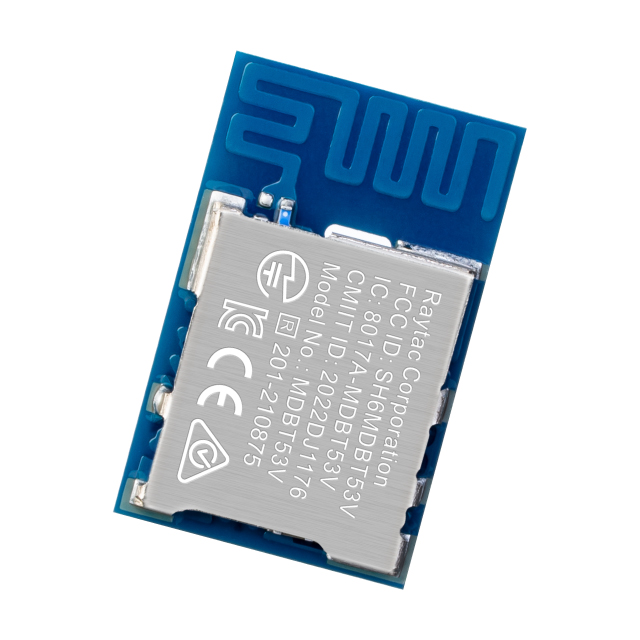

MDBT53V-P1M

Active

Raytac

RF TXRX MOD 802.15.4 BT TH SMD

Search across all available documentation for this part.

Active

Raytac

RF TXRX MOD 802.15.4 BT TH SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth ANT+, Bluetooth v5.4, Thread, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MDBT53V-P1M	MDBT53V Series

Antenna Type	PCB Trace	Chip, PCB Trace
Current - Receiving [Max]	7.9 mA	7.9 mA
Current - Receiving [Min]	2.7 mA	2.7 mA
Current - Transmitting [Max]	11.3 mA	11.3 mA
Current - Transmitting [Min]	1.5 mA	1.5 mA
Data Rate	2 Mbps	2 Mbps
Frequency	2.4 GHz	2.4 GHz
Memory Size [custom]	512 kB	512 kB
Memory Size [custom]	1 MB	1 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	39-SMD Module	39-SMD Module
Power - Output	3 dBm	3 dBm
Protocol	ANT+, Zigbee®, Bluetooth v5.4, Thread	ANT+, Zigbee®, Bluetooth v5.4, Thread
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Sensitivity	-104 dBm	-104 dBm
Serial Interfaces	UART, GPIO, SPI, I2S, ADC, I2C, PWM	UART, GPIO, SPI, I2S, ADC, I2C, PWM
Utilized IC / Part	nRF5340	nRF5340
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

RF TXRX MOD 802.15.4 BT CHIP SMD

Part	Data Rate	Package / Case	Current - Receiving [Max]	Current - Receiving [Min]	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Sensitivity	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Serial Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Utilized IC / Part	Memory Size [custom]	Memory Size [custom]	Protocol	Mounting Type
Raytac MDBT53V-1M	2 Mbps	39-SMD Module	7.9 mA	2.7 mA	802.15.4, Bluetooth	5.5 V	1.7 V	Chip	-104 dBm	1.5 mA	11.3 mA	3 dBm	ADC, GPIO, I2C, I2S, PWM, SPI, UART	-40 °C	105 ░C	2.4 GHz	nRF5340	512 kB	1 MB	ANT+, Bluetooth v5.4, Thread, Zigbee®	Surface Mount
Raytac MDBT53V-P1M	2 Mbps	39-SMD Module	7.9 mA	2.7 mA	802.15.4, Bluetooth	5.5 V	1.7 V	PCB Trace	-104 dBm	1.5 mA	11.3 mA	3 dBm	ADC, GPIO, I2C, I2S, PWM, SPI, UART	-40 °C	105 ░C	2.4 GHz	nRF5340	512 kB	1 MB	ANT+, Bluetooth v5.4, Thread, Zigbee®	Surface Mount
