Description
General part information

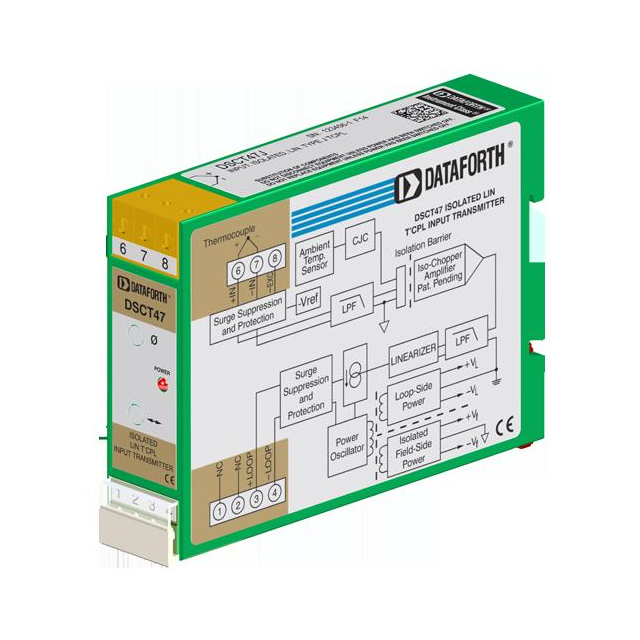

DSCT47R-09
LINEAR TC 4-20MA TRANSMIT DIN
Technical Specifications
Parameters and characteristics for this part
| Specification | DSCT47R-09 |
|---|---|
| Input Temperature (Additional) Maximum | 1750 °C |
| Input Temperature (Additional) Minimum | 500 °C |
| Input Type | Temperature |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 4 mA |
| Output Type | Current |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply | Loop Powered |
| Voltage - Supply Type | Loop Powered |
