Description
General part information

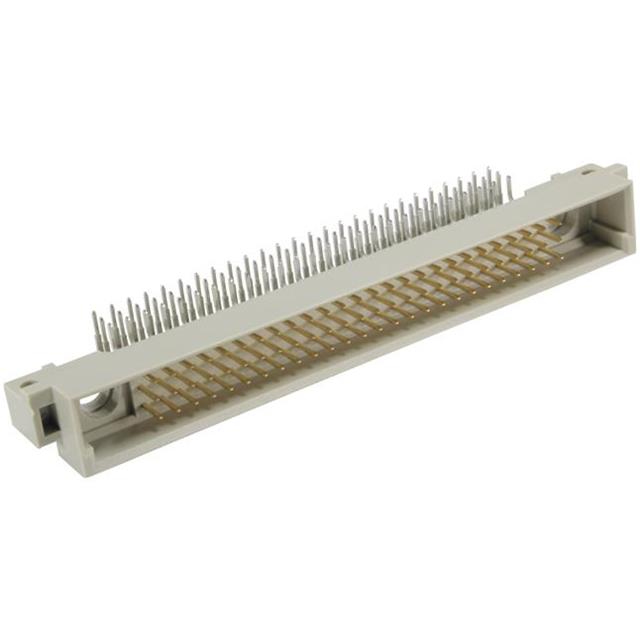

09033782901
78 Position Din Connector Header, Male Pins Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 09033782901 |
|---|---|
| Connector Type | Header, Male Pins |
| Current Rating | 2 A |
| Features | Mounting Clips |
| Level, Class | 1 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 78 |
| Number of Positions Loaded | 78 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | M |
| Termination | Solder |
