LP1S-26S-509-Z
ObsoleteNidec Components Corporation
SWITCH PUSHBUTTON DPDT 3A 125V
LP1S-26S-509-Z
ObsoleteNidec Components Corporation
SWITCH PUSHBUTTON DPDT 3A 125V
Description
General part information

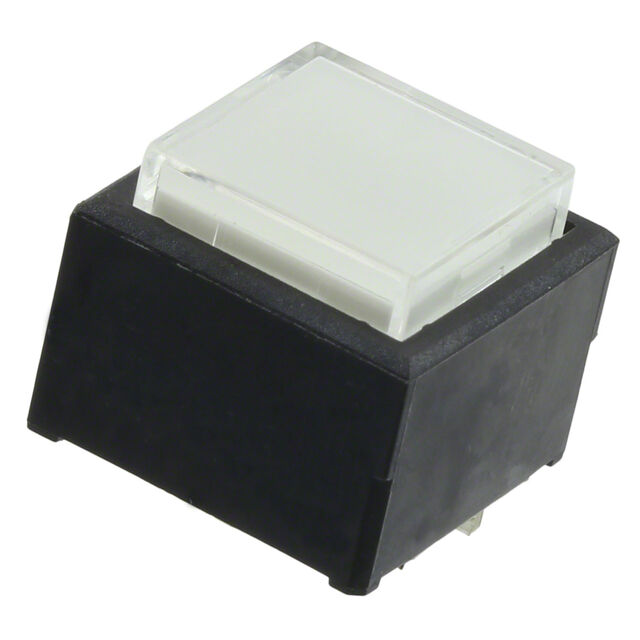

LP1S-26S-509-Z
Pushbutton Switch DPDT Standard, Illuminated Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | LP1S-26S-509-Z |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button |
| Circuit | DPDT |
| Color | Green |
| Color - Actuator/Cap | Clear |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 30000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 2.1 VDC |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -15 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
