FMCA2244-48
ActiveFairview Microwave

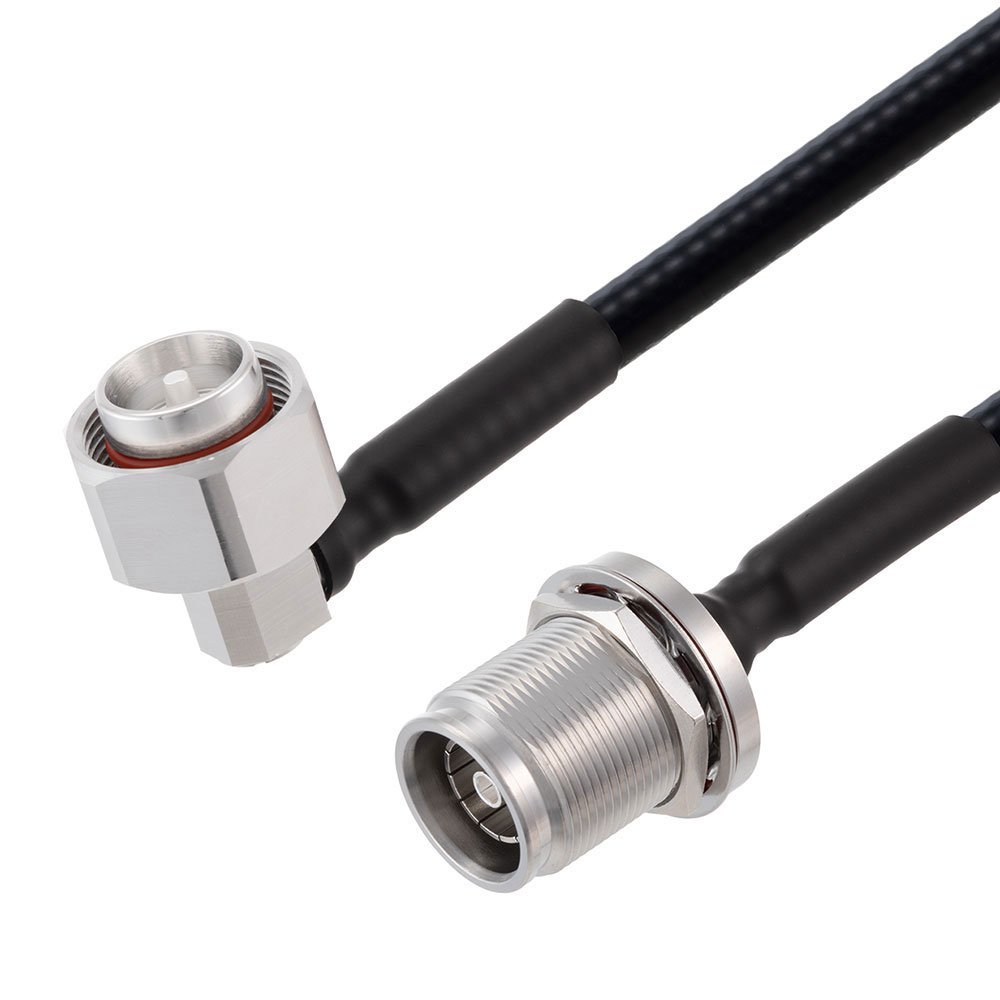

CBL ASSY 4.3-10PLUG-4.3-10JACK 4
FMCA2244-48
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-4.3-10JACK 4
Description
General part information
FMCA2244-48
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2244-48 |
|---|---|
| 1st Connector | 4.3/10 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 4.3 mm, 4.3 |
| 1st Connector Dimension (2) | 10, 10 mm |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Size (Dimension 1) | 4.3 mm |
| 1st Connector Size (Dimension 2) | 10 mm |
| 1st Connector Type | Jack |
| 1st Contact Gender | Female |
| 2nd Connector | 4.3/10 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.25 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.25 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.25 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 48 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to 4.3/10 |
