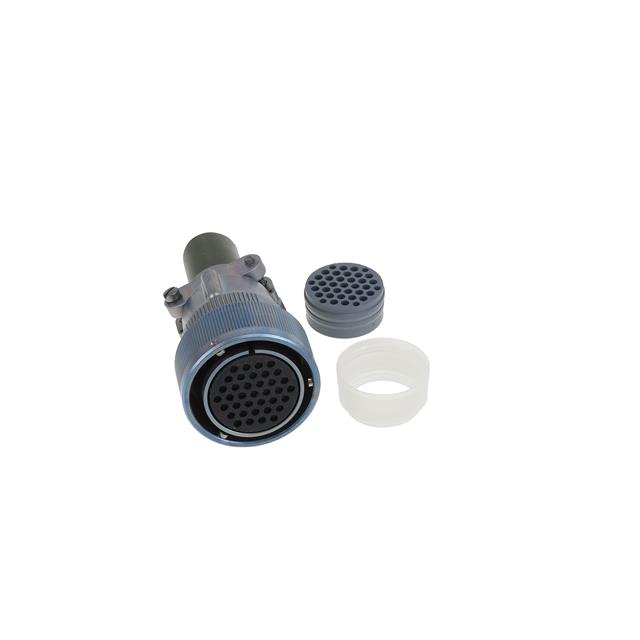

Specification	CA3106E28-21S-B-A240

Applications	Military
Backshell Material	Aluminum Alloy
Cable Opening	0.843 in
Color	Blue, Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating	22 A
Fastening Type	Reverse Bayonet Lock
Features	Backshell, Strain Relief, Coupling Nut, Cable Clamp
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polychloroprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	37 pos
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Zinc Nickel
Qualification	MIL-DTL-5015
Shell Finish	Zinc Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert Length	28 mm
Shell Size - Insert Width	21 mm
Shielding	Unshielded
Termination	Crimp
Voltage Rating (AC)	50 VAC
Voltage Rating (DC)	75 VDC

CA310 Series

...

Part	Color	Connector Type	Termination	Fastening Type	Mounting Feature	Shell Size - Insert Width	Shell Size - Insert Length	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Shell Finish	Qualification	Voltage Rating	Mounting Type	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Orientation	Contact Finish - Mating	Current Rating Options	Current Rating	Shell Size - Insert	Contact Finish Thickness - Mating	Features	Type	Insert Material	Note	Contact Type	Housing Color	Contact Size	Shielding	Contact Shape
ITT Cannon, LLC CA3102R28-11PZ	Olive Drab	Male Pins Receptacle	Solder Cup	Threaded	Flange	11 mm	28 mm	Aluminum Alloy	IP65	Dust Tight Water Resistant	Olive Drab Cadmium	MIL-DTL-5015	50 V	Panel Mount	Metal	125 °C	-55 °C	22	Z	Silver	22A 41A
ITT Cannon, LLC CA3106R14S-5PB	Olive Drab	Male Pins Plug	Solder Cup	Reverse Bayonet Lock				Aluminum Alloy	IP67	Dust Tight Waterproof	Olive Drab Cadmium	MIL-DTL-5015	50 V	Free Hanging (In-Line)	Metal	125 °C	-55 °C	5	N (Normal)	Silver		22 A	14S-5
ITT Cannon, LLC CA3102E32-17S	Olive Drab	Female Sockets Receptacle	Solder Cup	Threaded	Flange	17 mm	32 mm	Aluminum Alloy	IP65	Dust Tight Water Resistant	Olive Drab Cadmium	MIL-DTL-5015	50 V	Panel Mount	Metal	125 °C	-55 °C	4	N (Normal)	Silver		135 A
ITT Cannon, LLC CA3102E22-4PBF80	Olive Drab	Male Pins Receptacle	Crimp	Reverse Bayonet Lock	Flange	4 mm	22 mm	Aluminum Alloy	IP67	Dust Tight Waterproof	Olive Drab Cadmium	MIL-DTL-5015	50 V	Panel Mount	Metal	125 °C	-55 °C	4	N (Normal)	Silver	41A 74A
ITT Cannon, LLC CA3102R18-1SK10	Olive Drab	Female Sockets Receptacle	Crimp	Threaded	Flange	1 mm	18 mm	Aluminum Alloy	IP65	Dust Tight Water Resistant	Olive Drab Cadmium	MIL-DTL-5015	50 V	Panel Mount	Metal	125 °C	-55 °C	10	N (Normal)	Gold		22 A		20 Ąin
ITT Cannon, LLC CA3101E14S-5P	Olive Drab	Male Pins Receptacle	Solder Cup	Threaded				Aluminum Alloy	IP65	Dust Tight Water Resistant	Olive Drab Cadmium	MIL-DTL-5015	50 V	Free Hanging (In-Line)	Metal	125 °C	-55 °C	5	N (Normal)	Silver		22 A	14S-5		Strain Relief
ITT Cannon, LLC CA3106E18-1SB06	Olive Drab	Female Sockets Plug	Solder Cup	Reverse Bayonet Lock		1 mm	18 mm	Aluminum Alloy	IP67	Dust Tight Waterproof	Olive Drab Cadmium	MIL-DTL-5015	50 V	Free Hanging (In-Line)	Metal	125 °C	-55 °C	10	N (Normal)	Silver		22 A			Shrink Boot Adapter
ITT Cannon, LLC CA3100E24-28PBF80F97A176
ITT Cannon, LLC CA3106E28-21PB02F0		Plug Housing		Reverse Bayonet Lock		21 mm	28 mm	Aluminum Alloy	IP67	Dust Tight Waterproof	Cadmium Chromate	MIL-DTL-5015		Free Hanging (In-Line)		125 °C	-55 °C	37 pos	N (Normal)						Backshell Coupling Nut Shrink Boot Adapter	For Male Pins	Polychloroprene	Contacts Not Included	Crimp	Olive Drab	16 S	Unshielded	Circular
