ROTARY SWITCHES ROTARY SWITCH, CONCENTRIC SHAFT, 30-DEG;, 1 DECK, 1 POLE/DECK, 6 POSITIONS/POLE, NON-SHORTING - 1 DECK, 1 POLE/DECK, 12 POSITIONS/POLE, NON-SHORTING, CONTINUOUS, 71C30-1BE-1AL

Find alt

Alpha

71C301106N-1112NC

Active

Grayhill Inc.

ROTARY SWITCHES ROTARY SWITCH, CONCENTRIC SHAFT, 30-DEG;, 1 DECK, 1 POLE/DECK, 6 POSITIONS/POLE, NON-SHORTING - 1 DECK, 1 POLE/DECK, 12 POSITIONS/POLE, NON-SHORTING, CONTINUOUS, 71C30-1BE-1AL

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

71 Series

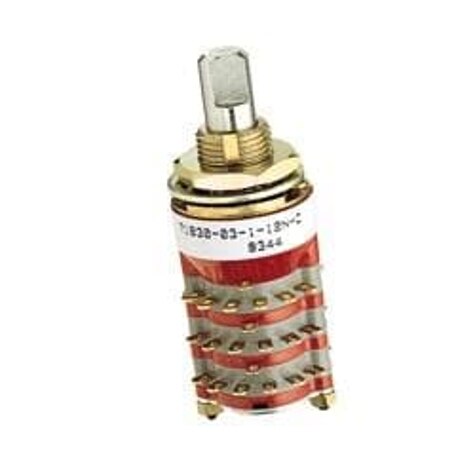

Rotary Switch 6, 12 Position SP6T, SP12T 250mA (AC/DC) 115 VAC Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification	71C301106N-1112NC

Actuator Inner Diameter	3.17 mm
Actuator Length	9.53 mm
Actuator Outer Diameter	6.35 mm
Actuator Type	Concentric, Concentric (3.17mm Dia, 6.35mm Dia)
Angle of Throw	30 °
Circuit per Deck	SP12T, SP6T
Contact Material	Silver Alloy
Contact Timing	Non-Shorting (BBM)
Current Rating	250 mA
Depth Behind Panel	35.94 mm
Index Stops	Fixed, Continuous
Mounting Type	Panel Mount
Number of Decks	1
Number of Poles per Deck	1
Number of Positions	6, 12
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

71 Series

...

Part	Actuator Diameter	Actuator Type	Index Stops	Depth Behind Panel	Mounting Type	Number of Poles per Deck	Voltage Rating - DC	Number of Positions (Max)	Number of Positions (Min)	Contact Timing	Circuit per Deck	Termination Style	Actuator Length	Number of Decks	Contact Material	Voltage Rating - AC	Angle of Throw	Current Rating
Grayhill Inc. 71BDF30-04-1-AJS	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	35.94 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Shorting (MBB)	SP12T	PC Pin	9.53 mm	4	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-01-1-AJN	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	19.33 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Non-Shorting (BBM)	SP12T	PC Pin	9.53 mm	1	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-07-1-AJN	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	59.66 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Non-Shorting (BBM)	SP12T	PC Pin	9.53 mm	7	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-04QAJS	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	35.94 mm	Panel Mount	2	30 V			Shorting (MBB)		Solder Lug	9.53 mm	4	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-06-1-AJS	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	54.13 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Shorting (MBB)	SP12T	PC Pin	9.53 mm	6	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-04-1-AJN	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	35.94 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Non-Shorting (BBM)	SP12T	PC Pin	9.53 mm	4	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-02-1-AJS	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	24.87 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Shorting (MBB)	SP12T	PC Pin	9.53 mm	2	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-08-1-AJN	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	65.2 mm	Panel Mount Right Angle Through Hole	1	30 V	12	2	Non-Shorting (BBM)	SP12T	PC Pin	9.53 mm	8	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-02-2-AJS	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	24.87 mm	Panel Mount Right Angle Through Hole	2	30 V	6	2	Shorting (MBB)	DP6T	PC Pin	9.53 mm	2	Silver Alloy	115 V	30 °	250 mA
Grayhill Inc. 71BDF30-05-2-AJN	6.35 mm	Flatted Flatted (6.35mm Dia)	Adjustable	41.48 mm	Panel Mount Right Angle Through Hole	2	30 V	6	2	Non-Shorting (BBM)	DP6T	PC Pin	9.53 mm	5	Silver Alloy	115 V	30 °	250 mA
