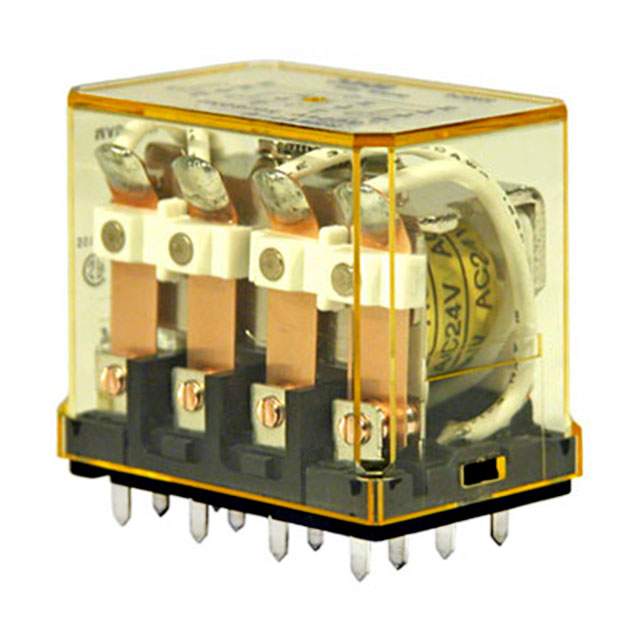

RH4V2-UDC24V

Active

IDEC Corporation

GENERAL PURPOSE RELAYS RELAY PCB 4PDT 10A 24VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RH4V2-UDC24V

Active

IDEC Corporation

GENERAL PURPOSE RELAYS RELAY PCB 4PDT 10A 24VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.81
		10	$ 17.65
		25	$ 16.85
		50	$ 16.27
		100	$ 15.72
		250	$ 15.01
		500	$ 14.49
Newark	Each	1	$ 22.31
		5	$ 21.08
		10	$ 18.53
		25	$ 16.64
		50	$ 15.60
		100	$ 14.75
		250	$ 13.90
Sager	N/A	1	$ 16.61
		11	$ 14.54
		28	$ 13.54
		55	$ 12.84
		115	$ 12.15

Description

General part information

RH4V2-U Series

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	RH4V2-UDC24V	RH4V2-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	62 mA	6.8 - 250 mA
Coil Resistance	388 Ohms	1.55 - 388 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 240 VAC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A	10 A
Features	-	Test Button, Lighted Indicator, Diode
Load - Max Switching	280 W, 1200 VA	280 - 2400 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	19.2 VDC	4.8 - 192 VAC
Must Release Voltage	2.4 VDC	0.6 - 72 VAC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Switching Voltage	120 VAC, 28 VDC	28 - 240 VDC
Termination Style	PC Pin	PC Pin

Part

Contact Rating (Current)

Switching Voltage

Termination Style

Must Operate Voltage

Operating Temperature [Max]

Operating Temperature [Min]

Contact Material

Coil Current

Approval Agency

Coil Type

Release Time

Contact Form

Relay Type

Coil Voltage

Must Release Voltage

Mounting Type

Coil Resistance

Operate Time

Load - Max Switching

Features

IDEC Corporation

RH4V2-UAC24V

10 A

30 VDC, 240 VAC

PC Pin

19.2 VAC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

83 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

24 VAC

7.2 VAC

Through Hole

84.5 Ohms

25 ms

300 W, 2400 VA

IDEC Corporation

RH4V2-UAC220V

10 A

30 VDC, 240 VAC

PC Pin

176 VAC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

9.1 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

220 VAC/DC

66 VAC

Through Hole

7.36 kOhms

25 ms

300 W, 2400 VA

IDEC Corporation

RH4V2-ULCDC24V

10 A

30 VDC, 240 VAC

PC Pin

19.2 VDC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

62 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

24 VDC

2.4 VDC

Through Hole

388 Ohms

25 ms

300 W, 2400 VA

Lighted Indicator, Test Button

IDEC Corporation

RH4V2-UDC110V

10 A

30 VDC, 240 VAC

PC Pin

88 VDC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

15 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

110 VDC

11 VDC

Through Hole

7.34 kOhms

25 ms

300 W, 2400 VA

IDEC Corporation

RH4V2-UDC220V

10 A

30 VDC, 240 VAC

PC Pin

176 VDC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

6.8 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

220 VDC

22 VDC

Through Hole

32.267 kOhms

25 ms

300 W, 2400 VA

IDEC Corporation

RH4V2-UAC240V

10 A

30 VDC, 240 VAC

PC Pin

192 VAC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

8.3 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

240 VAC

72 VAC/DC

Through Hole

9.12 kOhms

25 ms

300 W, 2400 VA

IDEC Corporation

RH4V2-UD-DC12V

10 A

30 VDC, 240 VAC

PC Pin

9.6 VDC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

125 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

12 VDC

1.2 VDC

Through Hole

96 Ohms

25 ms

300 W, 2400 VA

Diode

IDEC Corporation

RH4V2-ULCAC120V

10 A

30 VDC, 240 VAC

PC Pin

96 VAC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

16.5 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

120 VAC

36 VAC

Through Hole

2.22 kOhms

25 ms

300 W, 2400 VA

Lighted Indicator, Test Button

IDEC Corporation

RH4V2-UDC6V

10 A

30 VDC, 240 VAC

PC Pin

4.8 VDC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

250 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

0.6 VDC

Through Hole

24 Ohms

25 ms

300 W, 2400 VA

IDEC Corporation

RH4V2-ULDC12V

10 A

30 VDC, 240 VAC

PC Pin

9.6 VDC

70 °C

-25 °C

Silver Cadmium Oxide (AgCdO)

125 mA

CE, CSA, cURus, TUV

Non Latching

25 ms

4PDT (4 Form C)

General Purpose

12 VDC

1.2 VDC

Through Hole

96 Ohms

25 ms

300 W, 2400 VA

Lighted Indicator

Part	Contact Rating (Current)	Switching Voltage	Termination Style	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Coil Current	Approval Agency	Coil Type	Release Time	Contact Form	Relay Type	Coil Voltage	Must Release Voltage	Mounting Type	Coil Resistance	Operate Time	Load - Max Switching	Features
IDEC Corporation RH4V2-UAC24V	10 A	30 VDC, 240 VAC	PC Pin	19.2 VAC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	83 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	24 VAC	7.2 VAC	Through Hole	84.5 Ohms	25 ms	300 W, 2400 VA
IDEC Corporation RH4V2-UAC220V	10 A	30 VDC, 240 VAC	PC Pin	176 VAC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	9.1 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	220 VAC/DC	66 VAC	Through Hole	7.36 kOhms	25 ms	300 W, 2400 VA
IDEC Corporation RH4V2-ULCDC24V	10 A	30 VDC, 240 VAC	PC Pin	19.2 VDC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	62 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	24 VDC	2.4 VDC	Through Hole	388 Ohms	25 ms	300 W, 2400 VA	Lighted Indicator, Test Button
IDEC Corporation RH4V2-UDC110V	10 A	30 VDC, 240 VAC	PC Pin	88 VDC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	15 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	110 VDC	11 VDC	Through Hole	7.34 kOhms	25 ms	300 W, 2400 VA
IDEC Corporation RH4V2-UDC220V	10 A	30 VDC, 240 VAC	PC Pin	176 VDC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	6.8 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	220 VDC	22 VDC	Through Hole	32.267 kOhms	25 ms	300 W, 2400 VA
IDEC Corporation RH4V2-UAC240V	10 A	30 VDC, 240 VAC	PC Pin	192 VAC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	8.3 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	240 VAC	72 VAC/DC	Through Hole	9.12 kOhms	25 ms	300 W, 2400 VA
IDEC Corporation RH4V2-UD-DC12V	10 A	30 VDC, 240 VAC	PC Pin	9.6 VDC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	125 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	12 VDC	1.2 VDC	Through Hole	96 Ohms	25 ms	300 W, 2400 VA	Diode
IDEC Corporation RH4V2-ULCAC120V	10 A	30 VDC, 240 VAC	PC Pin	96 VAC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	16.5 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	120 VAC	36 VAC	Through Hole	2.22 kOhms	25 ms	300 W, 2400 VA	Lighted Indicator, Test Button
IDEC Corporation RH4V2-UDC6V	10 A	30 VDC, 240 VAC	PC Pin	4.8 VDC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	250 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose		0.6 VDC	Through Hole	24 Ohms	25 ms	300 W, 2400 VA
IDEC Corporation RH4V2-ULDC12V	10 A	30 VDC, 240 VAC	PC Pin	9.6 VDC	70 °C	-25 °C	Silver Cadmium Oxide (AgCdO)	125 mA	CE, CSA, cURus, TUV	Non Latching	25 ms	4PDT (4 Form C)	General Purpose	12 VDC	1.2 VDC	Through Hole	96 Ohms	25 ms	300 W, 2400 VA	Lighted Indicator
