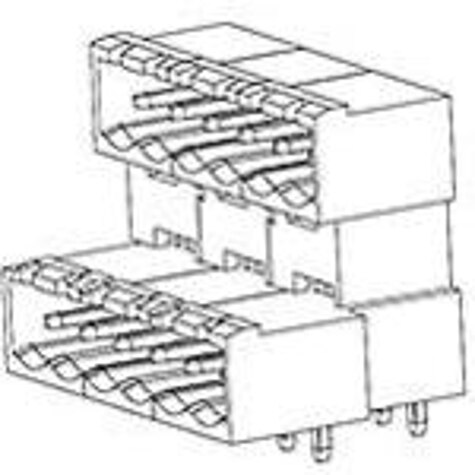

Specification	0395381024

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	15 A
Features	Interlocking (Side)
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.933 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	24 pos
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Positions Per Level	12
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

039538 Series

Part	Voltage - UL	Color	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Header Orientation Angle	Header Orientation	Contact Mating Finish	Number of Levels	Type	Positions Per Level	Features	Mounting Type	Termination Style	Number of Positions	Current - UL	Insulation Height	Housing Material	Contact Material	Material Flammability Rating	Contact Tail Length
Molex 0395381032	300 V	Black	5.08 mm	-40 °C	105 °C	90 °	Right Angle	Tin	2	Header Male Pins Shrouded (4 Side)	16	Interlocking (Side)	Through Hole	Solder	32	15 A	0.933 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395381022	300 V	Black	5.08 mm	-40 °C	105 °C	90 °	Right Angle	Tin	2	Header Male Pins Shrouded (4 Side)	11	Interlocking (Side)	Through Hole	Solder	22	15 A	0.933 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395383024	300 V	Black	5.08 mm	-40 °C	105 °C		Vertical	Tin	2	Header Male Pins Shrouded (4 Side)	12	Interlocking (Side)	Through Hole	Solder	24 pos	15 A	0.87 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395383048	300 V	Black	5.08 mm	-40 °C	105 °C		Vertical	Tin	2	Header Male Pins Shrouded (4 Side)	24	Interlocking (Side)	Through Hole	Solder	48	15 A	0.87 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395388034	300 V	Green	5.08 mm	-40 °C	105 °C		Vertical	Tin	2	Header Male Pins Shrouded (4 Side)	17	Interlocking (Side)	Through Hole	Solder	34	15 A	0.87 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395380006	300 V	Black	5.08 mm	-40 °C	105 °C	90 °	Right Angle	Tin	2	Header Male Pins Shrouded (2 Side)	3	Interlocking (Side)	Through Hole	Solder	6	15 A	0.933 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395381016	300 V	Black	5.08 mm	-40 °C	105 °C	90 °	Right Angle	Tin	2	Header Male Pins Shrouded (4 Side)	8	Interlocking (Side)	Through Hole	Solder	16	15 A	0.933 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395386006	300 V	Green	5.08 mm	-40 °C	105 °C	90 °	Right Angle	Tin	2	Header Male Pins Shrouded (4 Side)	3	Interlocking (Side)	Through Hole	Solder	6	15 A	0.933 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395383012	300 V	Black	5.08 mm	-40 °C	105 °C		Vertical	Tin	2	Header Male Pins Shrouded (4 Side)	6	Interlocking (Side)	Through Hole	Solder	12	15 A	0.87 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.138 in
Molex 0395385030	300 V	Green	5.08 mm	-40 °C	105 °C	90 °	Right Angle	Tin	2	Header Male Pins Shrouded (2 Side)	15	Interlocking (Side)	Through Hole	Solder	30	15 A	0.933 in	Nylon 6/6 PA66 Polyamide	Brass	UL94 V-0	0.15 in
