Description
General part information
TPT1042VQ-DF6R-S

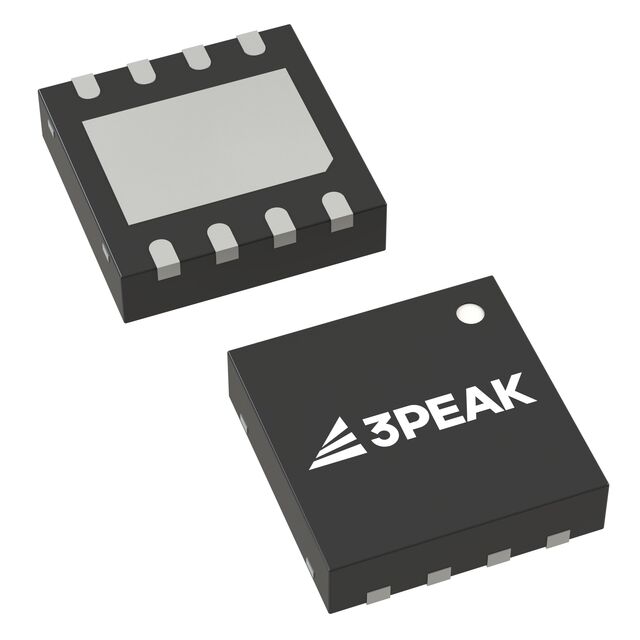

1/1 Transceiver Half CANbus 8-DFN (3x3)
Technical Specifications
Parameters and characteristics for this part
| Specification | TPT1042VQ-DF6R-S |
|---|---|
| Data Rate | 5 MBd |
| Duplex | Half |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-VDFN Exposed Pad |
| Package Length | 3 mm |
| Package Name | 8-DFN |
| Package Width | 3 mm |
| Protocol | CANbus |
| Qualification | AEC-Q100 |
| Receiver Hysteresis | 120 mV |
| Type | Transceiver |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
