1-103542-9

Active

TE Connectivity AMP Connectors

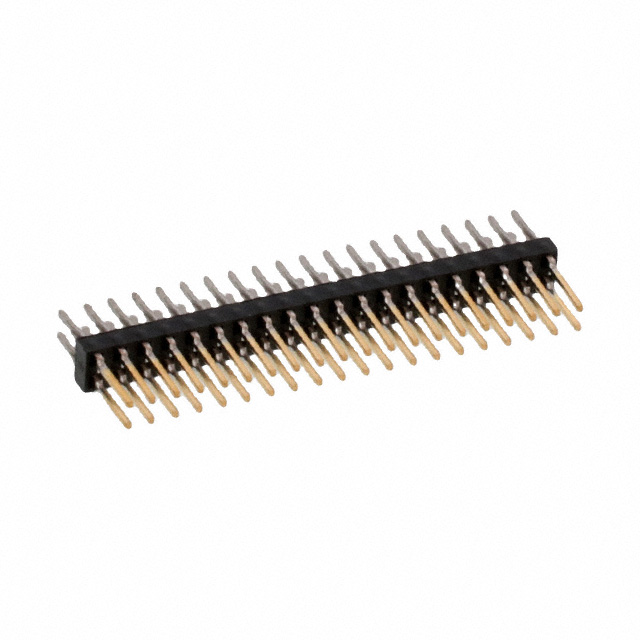

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-103542-9

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-103542-9	103542 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	8.13 mm	8.13 mm
Contact Length - Mating	0.32 in	0.32 in
Contact Length - Post	0.25 in	0.25 in
Contact Length - Post	6.35 mm	6.35 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	40	8 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	16.76 mm	16.76 mm
Overall Contact Length	0.66 in	0.66 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.67
		10	$ 14.37

103542 Series

CONN HEADER VERT 80POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Shrouding	Mounting Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Insulation Color	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Post	Contact Material	Material Flammability Rating	Termination	Current Rating (Amps)	Style	Number of Positions Loaded	Number of Positions
TE Connectivity AMP Connectors 8-103542-9	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	80	30 Áin	0.76 Ám	Square	Tin	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 2-103542-9	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	60	30 Áin	0.76 Ám	Square	Tin-Lead	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 1-103542-5	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black		30 Áin	0.76 Ám	Square	Tin-Lead	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 1-103542-9	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	40	30 Áin	0.76 Ám	Square	Tin-Lead	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 6-103542-6	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	34	30 Áin	0.76 Ám	Square	Tin	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 7-103542-9	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	60	30 Áin	0.76 Ám	Square	Tin	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 6-103542-2	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	26	30 Áin	0.76 Ám	Square	Tin	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 103542-3	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black	8	30 Áin	0.76 Ám	Square	Tin-Lead	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All
TE Connectivity AMP Connectors 5-103542-7	0.1 in	2.54 mm	16.76 mm	0.66 in	Unshrouded	Through Hole	Push-Pull	2.54 mm	0.1 in	Thermoplastic	0.25 in	6.35 mm	Gold	0.09 in	2.29 mm	2.54 µm	100 µin	Header	8.13 mm	0.32 in	-55 °C	125 °C	Male Pin	2	Black		30 Áin	0.76 Ám	Square	Tin	Copper Alloy	UL94 V-0	Press-Fit, Solder	3 A	Board to Board, Cable	All	16

Description

General part information

103542 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)
