SFH 9500-Z
Obsoleteams-OSRAM USA INC.
SENSOR OPT SLOT PHOTOTRANS MODUL
SFH 9500-Z
Obsoleteams-OSRAM USA INC.
SENSOR OPT SLOT PHOTOTRANS MODUL
Description
General part information
SFH 9500-Z

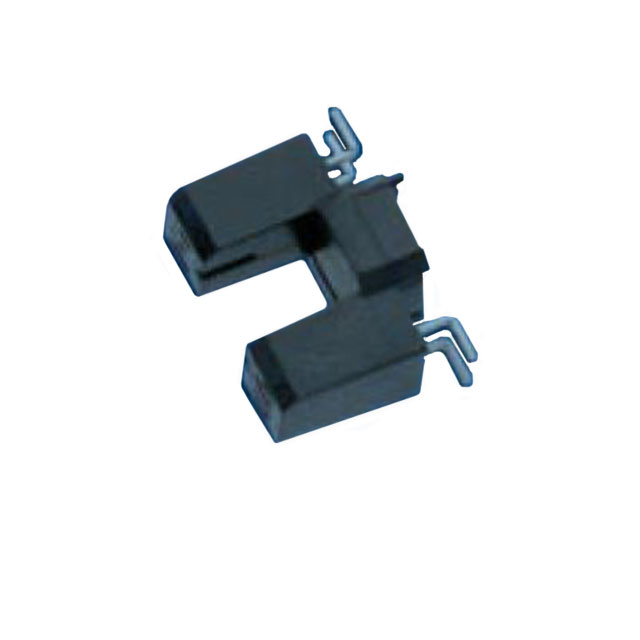

Optical Sensor Through-Beam 0.205" (5.2mm) Phototransistor Module, Slotted
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 9500-Z |
|---|---|
| Current - Collector (Ic) (Max) | 0.05 mA |
| Current - DC Forward (If) (Max) | 60 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Phototransistor |
| Package / Case | Module, Slotted |
| Response Time | 17 µs, 13 µs |
| Sensing Distance | 0.205 " |
| Sensing Method | Through-Beam |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
