2906213

Active

Phoenix Contact

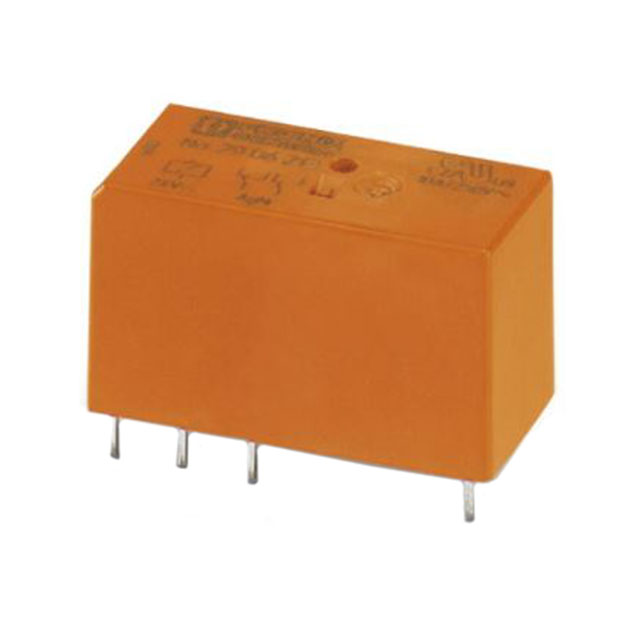

RELAY GEN PURPOSE DPDT 8A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2906213	29062 Series

Approval Agency	cULus, EAC, UR	cULus, EAC, UR, CSA
Coil Current	17 mA	17 - 33 mA
Coil Resistance	1.41 kOhms	1.41 - 364 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	8 A	8 - 11 A
Features	-	Socket Included, Diode, Lighted Indicator
Mounting Type	Through Hole	Through Hole, DIN Rail
Operate Time	7 ms	7 - 8 ms
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	3 ms	3 - 10 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	PC Pin	PC Pin, Spring Terminal

RELAY GEN PURPOSE DPDT 8A 24V

Part	Approval Agency	Contact Rating (Current)	Mounting Type	Coil Current	Release Time	Coil Type	Termination Style	Relay Type	Coil Resistance	Contact Material	Switching Voltage	Contact Form	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Features
Phoenix Contact 2906213	cULus, EAC, UR	8 A	Through Hole	17 mA	3 ms	Non Latching	PC Pin	General Purpose	1.41 kOhms	Silver Nickel (AgNi)	250 VAC, 250 VDC	DPDT (2 Form C)	7 ms	85 °C	-40 °C	24 VDC
Phoenix Contact 2906223	CSA	8 A	DIN Rail	33 mA	10 ms	Non Latching	Spring Terminal	General Purpose	364 Ohms	Silver Nickel (AgNi)	250 VAC, 250 VDC	DPDT (2 Form C)	8 ms	70 °C	-40 °C	12 VDC	Diode, Lighted Indicator, Socket Included
Phoenix Contact 2906224		11 A	DIN Rail	33 mA	10 ms	Non Latching	Spring Terminal	General Purpose	364 Ohms	Silver Nickel (AgNi)	250 VAC, 250 VDC	SPDT (1 Form C)	8 ms	70 °C	-40 °C	12 VDC	Diode, Lighted Indicator, Socket Included
