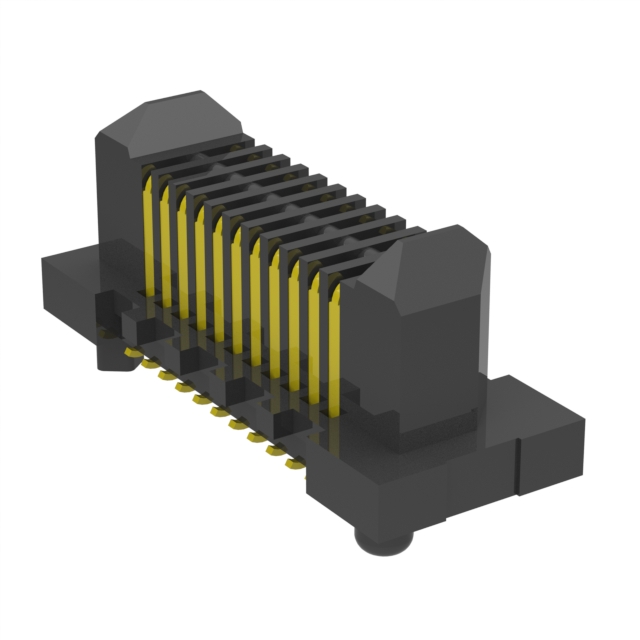

ERM8-011-02.0-L-DV-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 22 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERM8-zzz-zz.z-DV-zz Footprint Datasheet

ERM8-011-02.0-L-DV-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 22 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

DocumentsERM8-zzz-zz.z-DV-zz Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-011-02.0-L-DV-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	5.97 mm
Height Above Board	0.235 in
Mated Stacking Heights	7 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-011 Series

Part	Contact Finish	Connector Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Features	Mated Stacking Heights
Samtec Inc. ERM8-011-09.0-L-DV-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.508 in	12.91 mm	10 Áin	0.25 Ám	Board Guide Pick and Place	14 mm 16 mm 19 mm
Samtec Inc. ERM8-011-05.0-S-DV-L-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	30 Áin	0.76 Ám	Board Guide Latches Pick and Place	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-05.0-S-DV-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	30 Áin	0.76 Ám	Board Guide Pick and Place	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-05.0-L-DV-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	10 Áin	0.25 Ám	Board Guide	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-01-L-D-RA-L-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount Right Angle	0.246 in	6.25 mm	10 Áin	0.25 Ám	Board Guide Latches Mounting Flange
Samtec Inc. ERM8-011-01-S-D-EM2-L-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Board Edge Straddle Mount			30 Áin	0.76 Ám	Latches
Samtec Inc. ERM8-011-05.0-S-DV-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	30 Áin	0.76 Ám	Board Guide	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-01-L-D-EM2-L-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Board Edge Straddle Mount			10 Áin	0.25 Ám	Latches
Samtec Inc. ERM8-011-05.0-L-DV-L-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	10 Áin	0.25 Ám	Board Guide Latches Pick and Place	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-02.0-L-DV-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.235 in	5.97 mm	10 Áin	0.25 Ám	Board Guide	7 mm 9 mm 12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	475	$ 4.30

Description

General part information

ERM8-011 Series

22 Position Connector Header, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

ERM8-zzz-zz.z-DV-zz Footprint

Datasheet
