FDI18-250Q

Active

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

FDI18-250Q

Active

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FDI18-250Q	FDI18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Features	Butted Seam	Butted Seam
Gender	Female	Female
Insulation	Fully Insulated	Fully Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	22.1 mm	20.57 - 22.1 mm
Length - Overall [x]	0.87 in	0.81 - 0.87 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.02 - 0.032 "
Tab Thickness	0.81 mm	0.51 - 0.81 mm
Tab Width	6.35 mm	4.75 - 6.35 mm
Tab Width	0.25 in	0.187 - 0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

FDI18 Series

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.51MM

Part	Insulation	Insulation Diameter	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Color	Length - Overall [x]	Length - Overall [x]	Features	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Mounting Type	Tab Width	Tab Width	Gender	Contact Finish	Terminal Type	Contact Material
3M FDI18-187Q	Fully Insulated	3.68 mm	0.145 "	0.02 "	0.51 mm	Red	20.57 mm	0.81 in	Butted Seam	22 AWG	17.5 AWG	Crimp	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Tin	Standard	Brass
3M FDI18-250Q	Fully Insulated	3.68 mm	0.145 "	0.032 in	0.81 mm	Red	22.1 mm	0.87 in	Butted Seam	22 AWG	17.5 AWG	Crimp	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Tin	Standard	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.88
		10	$ 0.67
		25	$ 0.60
		50	$ 0.55
		100	$ 0.51
		250	$ 0.46
		500	$ 0.43
		1000	$ 0.40
		2500	$ 0.36
Newark	Pack of 25	1	$ 12.57

Description

General part information

FDI18 Series

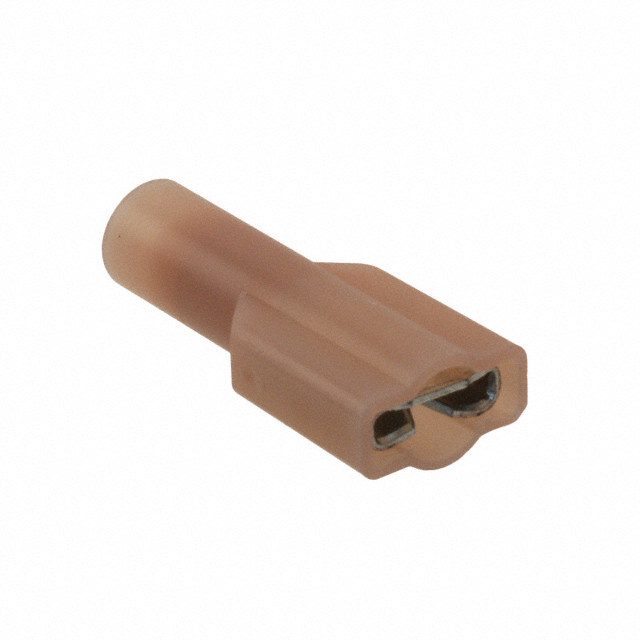

The FDI18-250Q is a Highland™ Female Disconnect Terminal Butted Seam with tin-plated brass contacts, female quick disconnect brass terminal and crimp termination. This Highland series terminal is nylon fully insulated, mates with male tab, accepts a wire range of 22 to 18AWG, a 0.250-inch stud size. Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
