1116-R12-CW
ActiveVisual Communications Company - VCC
PMI LED 18MM 12V TAB RED MS
1116-R12-CW
ActiveVisual Communications Company - VCC
PMI LED 18MM 12V TAB RED MS
Description
General part information
1116-R12-CW

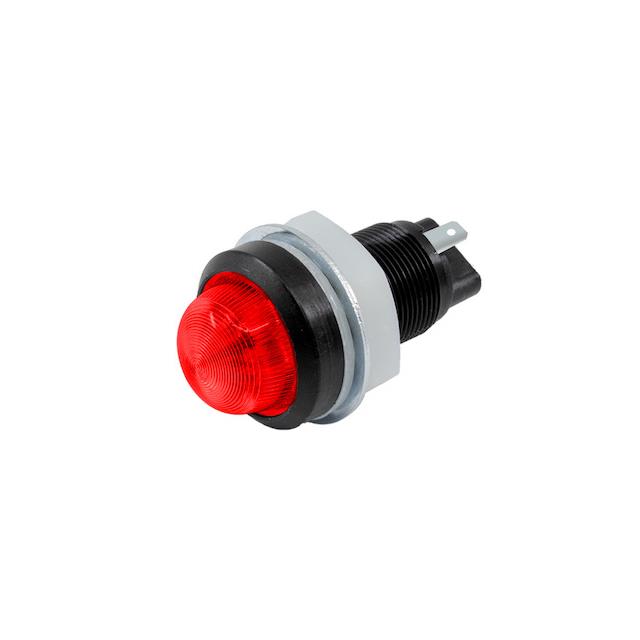

LED Panel Indicator Red Clear 12V 30mA Quick Connect - 0.187" (4.7mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1116-R12-CW |
|---|---|
| Current | 30 mA |
| Lamp Color | Red |
| Lens Color | Colorless |
| Lens Diameter | 18.5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Panel Cutout Dimension | 0.69 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.187") | 0.187 in |
| Ratings | DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 12 VDC |
