W1902
ActivePulse Electronics
RF ANT 850MHZ/900MHZ WHIP RA
W1902
ActivePulse Electronics
RF ANT 850MHZ/900MHZ WHIP RA
Description
General part information
W1902

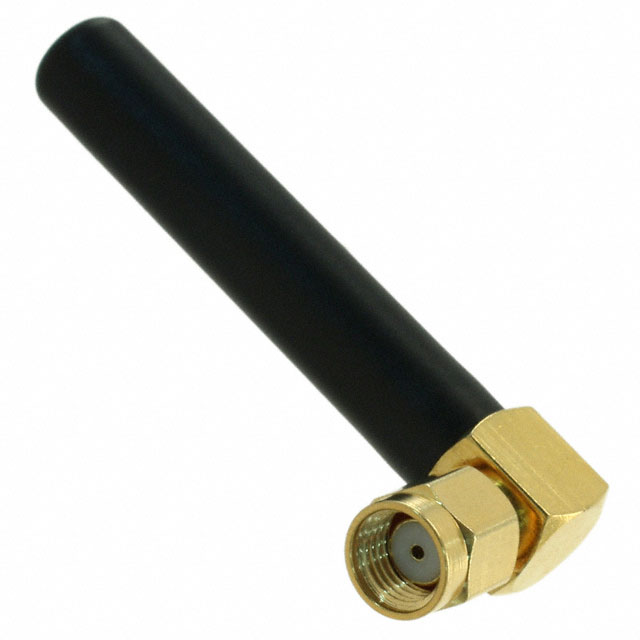

RF ANTENNA GSM, WCDMA Whip, Right Angle RP-SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | W1902 |
|---|---|
| Antenna Type | Right Angle, Whip |
| Applications | WCDMA, GSM |
| Frequency (Center/Band) | 1.8GHz, 850MHz, 2.1GHz, 900MHz, 1.9GHz |
| Frequency (Center/Band) - 1 | 850 MHz |
| Frequency (Center/Band) - 2 | 900 MHz |
| Frequency (Center/Band) - 3 | 1.8 GHz |
| Frequency (Center/Band) - 4 | 1.9 GHz |
| Frequency (Center/Band) - 5 | 2.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 2.5 dBi, 2 dBi, 1 dBi |
| Height (Max) | 1.949 in |
| Mounting Type | Connector Mount |
| Number of Bands | 5 |
| Return Loss | -4dB, -6dB |
| Return Loss | -6 dB, -4 dB |
| RF Family/Standard | Cellular |
| Termination Type | RP-SMA Male |
