216A-12FAF
ActiveATTEND Technology

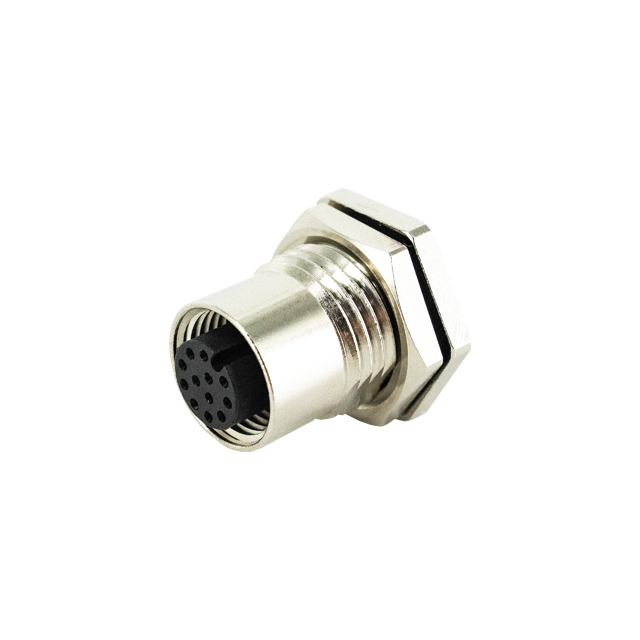

M12 A-CODE RECEPTACLE, 12 PIN FE
216A-12FAF
ActiveATTEND Technology
M12 A-CODE RECEPTACLE, 12 PIN FE
Description
General part information
216A-12FAF
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 216A-12FAF |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Material | Brass |
| Current Rating | 1.5 A |
| Fastening Type | Threaded |
| Ingress Protection | Waterproof |
| Insert Material | PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-12 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 30 V |
