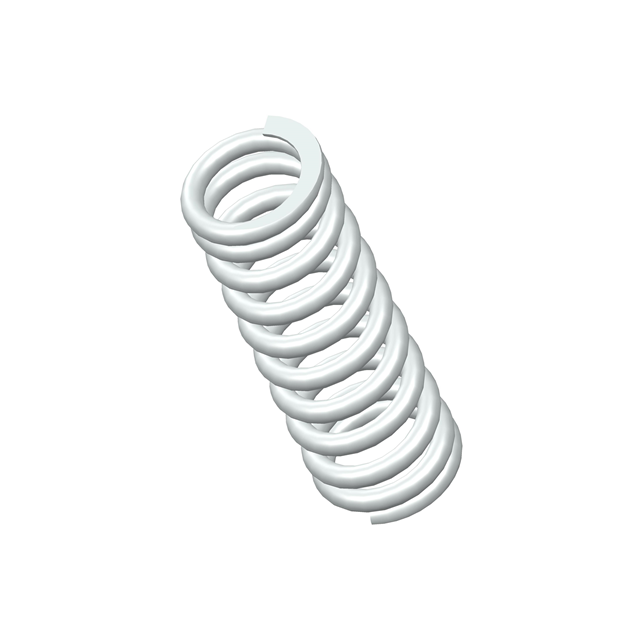

G-13CS
ActiveCentury Spring Corp
COMP O= .250,L= .75,W= .038
G-13CS
ActiveCentury Spring Corp
COMP O= .250,L= .75,W= .038
Description
General part information
G-13CS
COMP O= .250,L= .75,W= .038
Technical Specifications
Parameters and characteristics for this part
| Specification | G-13CS |
|---|---|
| Diameter - Inside | 0.174 in |
| Diameter - Outside | 0.25 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 33 lbs/in |
| Type | Compression |
| Wire Diameter | 0.038 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
