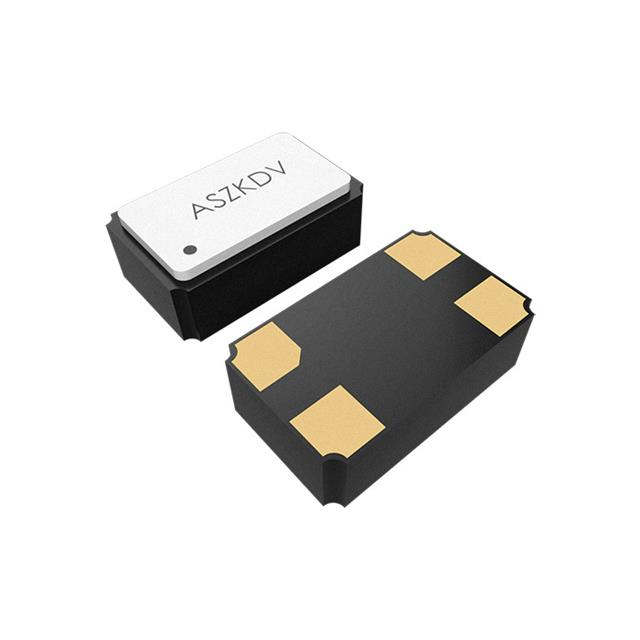

ASZKDV-32.768KHZ-L-T3
ActiveAbracon LLC
XTAL OSC XO 32.7680KHZ CMOS SMD
ASZKDV-32.768KHZ-L-T3
ActiveAbracon LLC
XTAL OSC XO 32.7680KHZ CMOS SMD
Description
General part information
ASZKDV-32.768KHZ-L-T3
32.768 kHz XO (Standard) CMOS Oscillator 1.6V ~ 5.5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASZKDV-32.768KHZ-L-T3 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.8 µA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.028 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2 mm |
| Package Name | 4-SMD |
| Package Width | 1.2 mm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.047 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 1.6 V |
