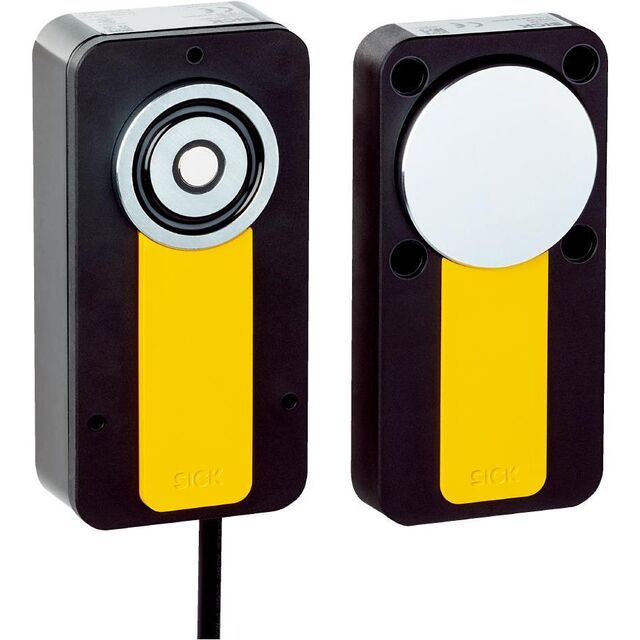

Specification	1077942

Actuator Type	Panel Disconnect
Approval Agency	FCC, RCM, cULus, EAC, CE
Conduit Thread Size	M12
Current Rating	100 mA
Holding Force	56 kgf
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Must Release	45 mm
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-20 °C
Termination Style	Cable with Connector (M12)
Type	RFID
Voltage - Supply (Maximum)	28.8 VDC
Voltage - Supply (Minimum)	19.2 VAC/VDC
