CTMC1812SF-6R8J
ActiveCentral Technologies

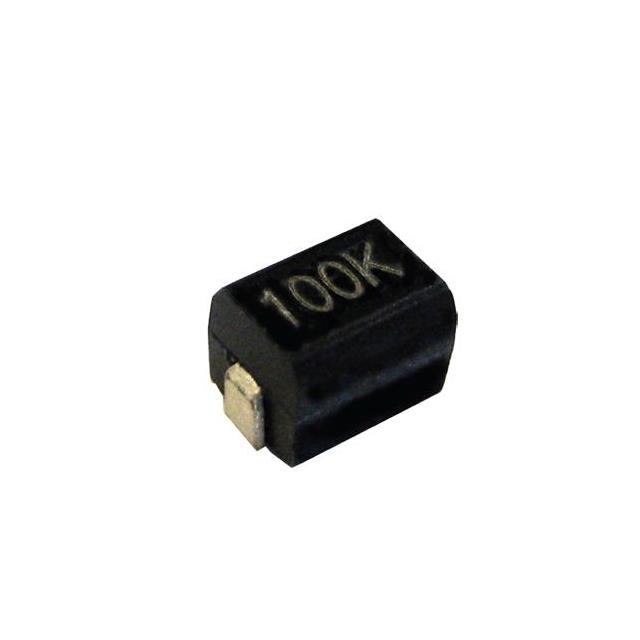

SMD FERRITE CORE WW INDUCTOR
CTMC1812SF-6R8J
ActiveCentral Technologies
SMD FERRITE CORE WW INDUCTOR
Description
General part information
CTMC1812SF-6R8J
6.8 µH Unshielded Drum Core, Wirewound Inductor 285 mA 1.2Ohm Max 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CTMC1812SF-6R8J |
|---|---|
| Current Rating | 285 mA |
| DC Resistance (DCR) (Max) | 1.2 Ohm |
| Frequency - Self Resonant | 35 MHz |
| Height - Seated (Max) | 0.134 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Package Name | 1812 |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
