HS2P3F20-BPE

Active

Switchcraft Inc.

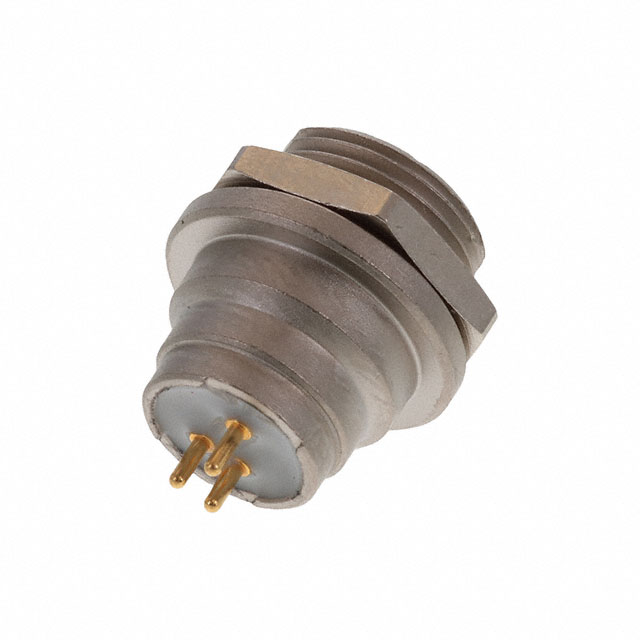

CONN CIRCULAR SKT 3 POS SOLDER ST THRU-HOLE 3 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR SKT 3 POS SOLDER ST THRU-HOLE 3 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P3F20-BPE	HS2P3F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	-	UL94 HF-1
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Fastening Type	Insert Material	Mounting Feature	Shell Finish	Contact Material	Color	Termination	Applications	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Primary Material	Shell Material	Voltage Rating	Orientation	Shielding	Ingress Protection	Contact Finish - Mating	Mounting Type
Switchcraft Inc. HS2P3F20	Push-Pull	Liquid Crystal Polymer (LCP)	Bulkhead - Rear Side Nut	Electroless Nickel	Copper Alloy	Silver	Crimp, Solder Cup	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	UL94 HF-1	135 °C	-40 °C	Receptacle, Female Sockets	Metal	Copper Alloy	125 VAC	Keyed	Shielded	IP66, IP67, IP68	Gold
Switchcraft Inc. HS2P3F20-BP	Push-Pull	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut	Electroless Nickel	Copper Alloy	Silver	Solder	Agriculture, Audio, General, Medical, Testing Equipment & Measurement		135 °C	-40 °C	Receptacle, Female Sockets	Metal	Copper Alloy	125 VAC	Keyed	Shielded	IP66, IP67, IP68	Gold	Panel Mount, Through Hole
Switchcraft Inc. HS2P3F20-BPE	Push-Pull	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut	Electroless Nickel	Copper Alloy	Silver	Solder	Agriculture, Audio, General, Medical, Testing Equipment & Measurement		135 °C	-40 °C	Receptacle, Female Sockets	Metal	Copper Alloy	125 VAC	Keyed	Shielded	IP66, IP67, IP68	Gold	Panel Mount, Through Hole
